Overview

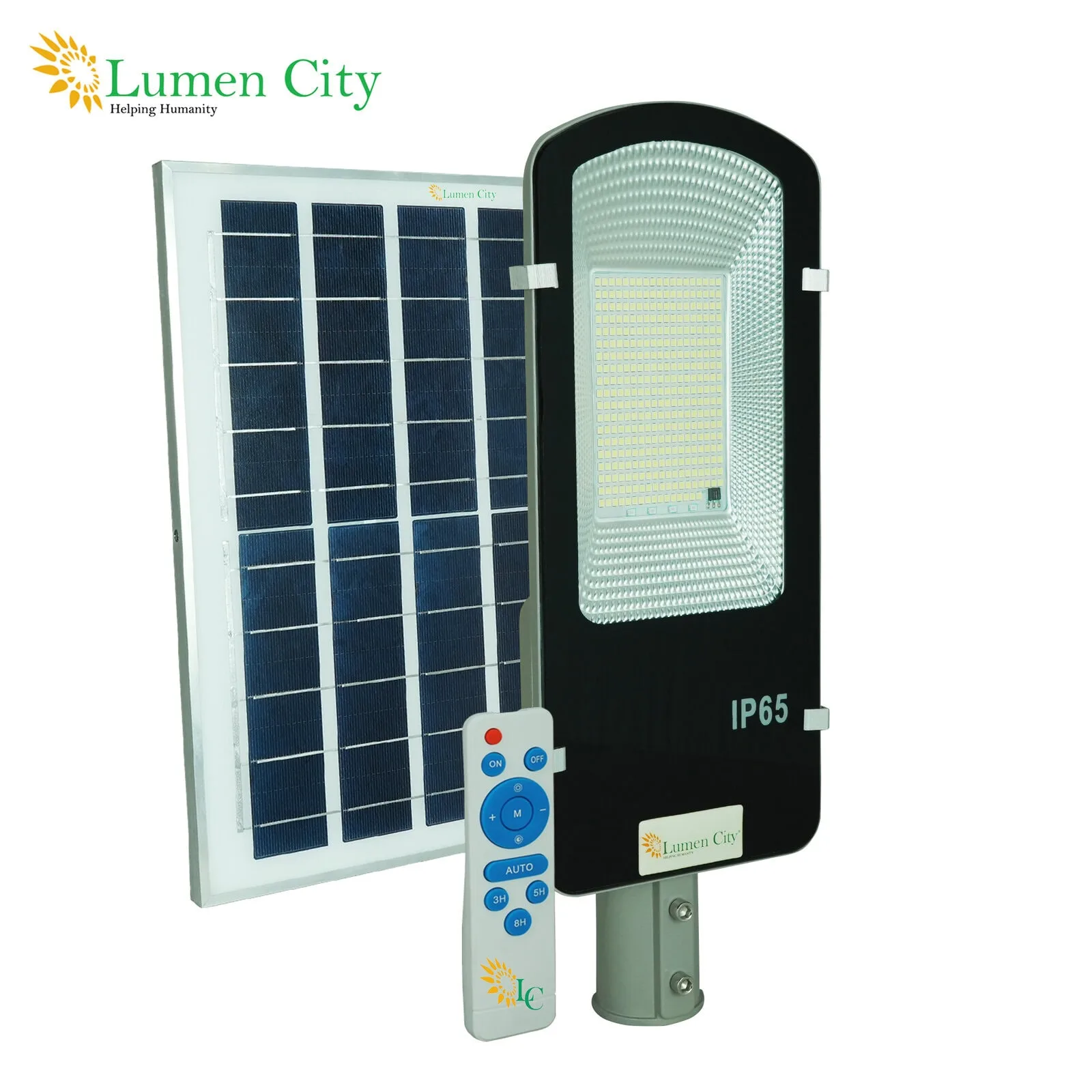

The 12W Solar Semi-Integrated Street Light (Model 1197) is a semi-integrated, off-grid solar lighting solution in which the LED luminaire and LiFePO4 battery unit are mounted on the pole or wall bracket, while the monocrystalline solar panel is positioned separately on the same bracket at the optimal angle for maximum solar capture. Featuring 358 Pcs 2835 LED chips at a combined 120W output in cool white and a 3.2V 12Ah LiFePO4 battery providing 12 hours of illumination, the 1197 is designed for housing colony internal streets, housing society pedestrian corridors, gated community access roads, rural panchayat village main lanes, small parking areas, and farmhouse access tracks across India. Compatible with 60mm diameter poles and supplied with a wall bracket, the 1197 installs without grid wiring on existing pole infrastructure or directly on masonry walls. IP65 weatherproofing and a wireless remote control complete the specification.
LED Performance & Light Output

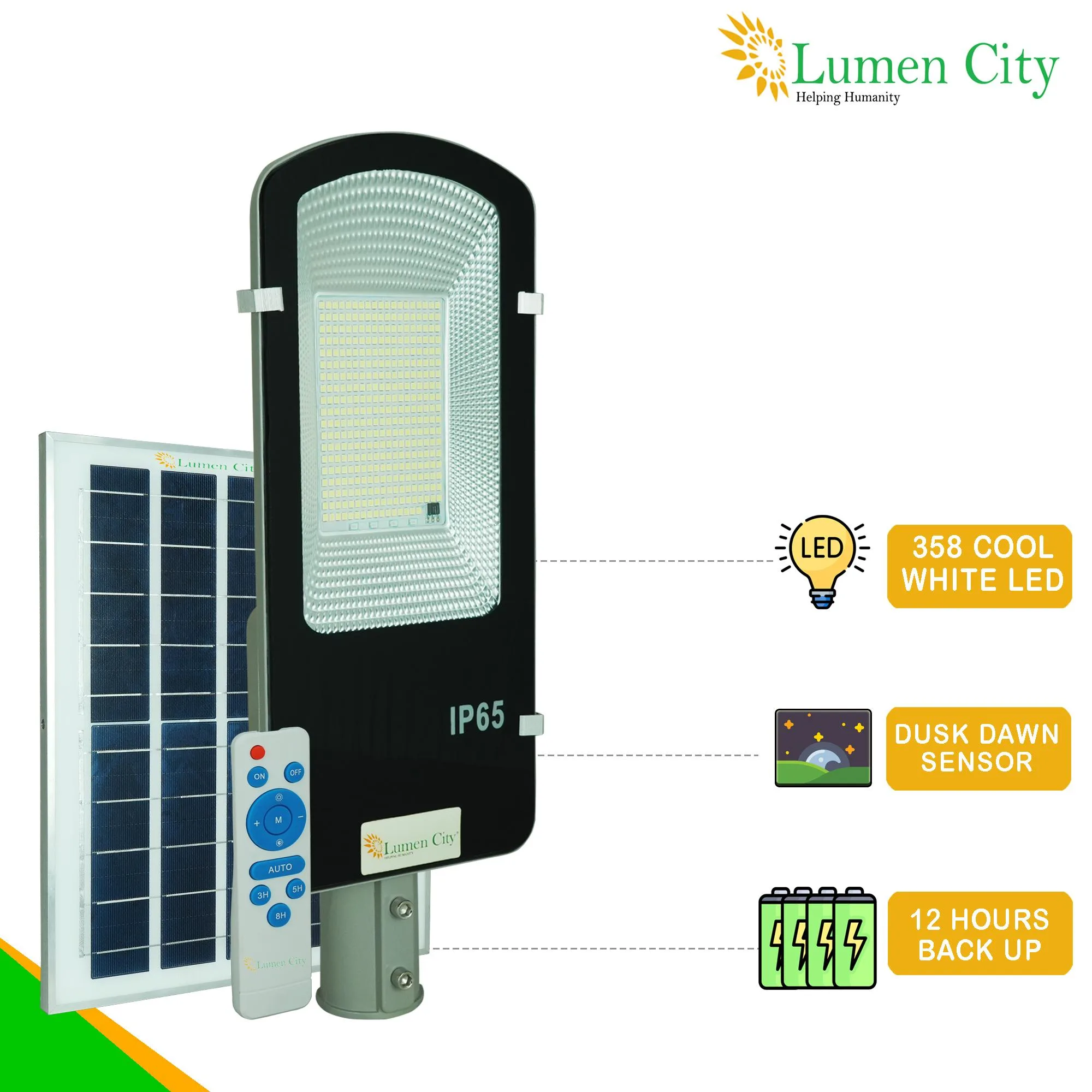

The Semi-Integrated Street Light 1197 integrates 358 Pcs 2835 LED chips at a combined 120W output in cool white. The 2835 SMD LED chip is a compact, high-efficiency format widely used in semi-integrated solar street lights across the Indian market; at 358 chips the 1197 achieves a high-density array that produces uniform, low-glare illumination appropriate for 3-metre pole and wall-bracket mounting on colony lanes and housing society pedestrian paths. The 2835 chip format offers good lumen-per-watt performance at the 120W combined output level without the thermal concentration of fewer, higher-wattage individual chips. Cool white output at 120W provides adequate contrast and brightness for pedestrian and slow-moving vehicle visibility on colony internal streets and housing society compound access routes at the 3-metre installation height specified for the 12W model.
Battery – LiFePO4 12Ah Capacity & Backup
The 3.2V 12Ah LiFePO4 battery in the Semi-Integrated Street Light 1197 provides the energy storage to power the 120W LED array through 12 hours of dusk-to-dawn operation. LiFePO4 (Lithium Iron Phosphate) is a superior specification to the lead-acid or polycrystalline-paired Li-ion batteries found in many competing semi-integrated solar street lights at equivalent wattage on IndiaMart and Amazon.in. Lead-acid alternatives at 12Ah capacity typically deliver 300–500 charge-discharge cycles before significant capacity loss — equivalent to 1–1.5 years of daily dusk-to-dawn operation — while LiFePO4 at the same capacity maintains over 80% capacity at 2,000+ cycles, representing more than five years of reliable operation. The LiFePO4 cell’s thermal stability is also relevant for the semi-integrated format, where the battery housing is pole or wall-mounted and exposed to India’s full range of ambient temperatures — from sub-zero January nights in north India’s hill districts to 48°C summer afternoons in Rajasthan and Madhya Pradesh.
Body Build & Weatherproofing

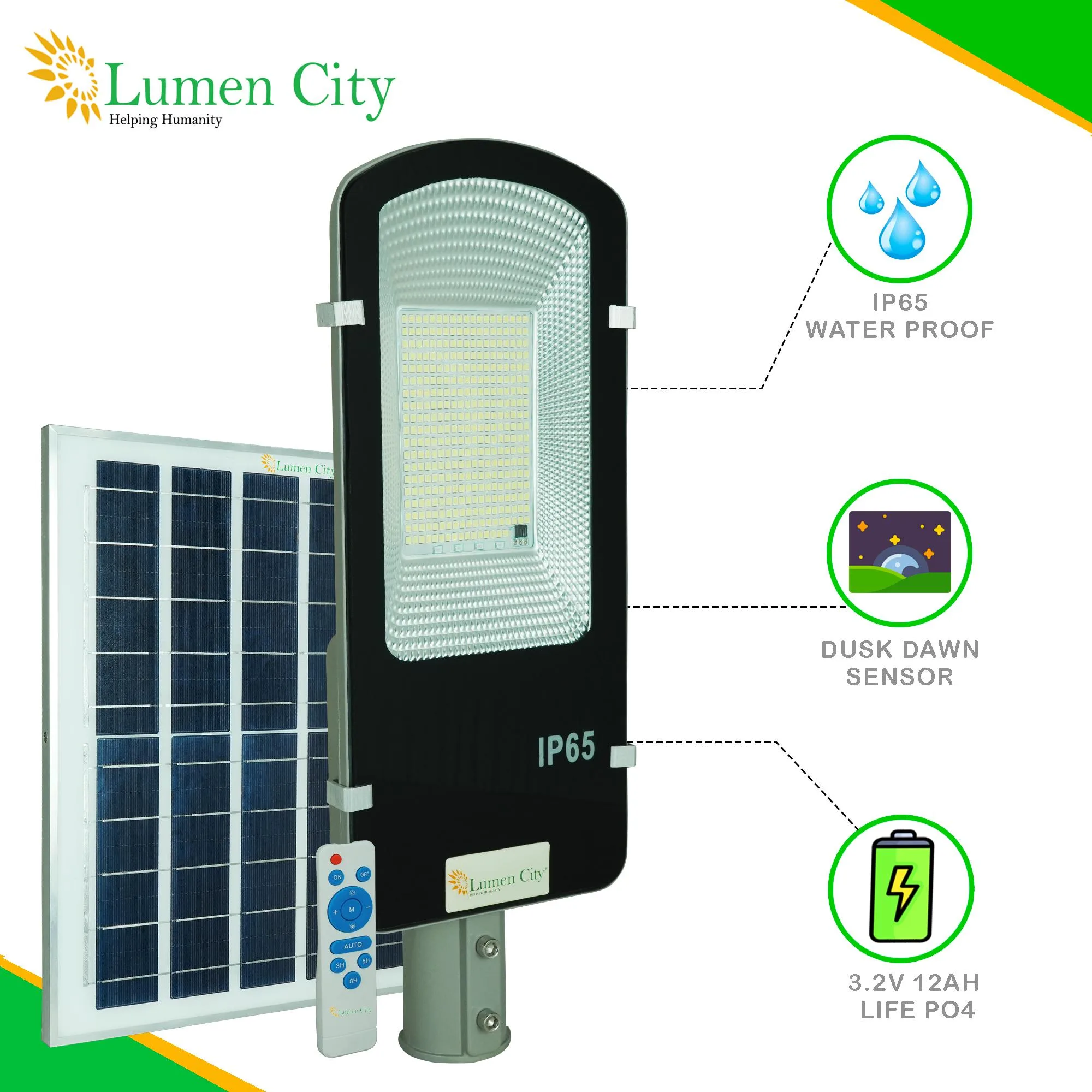

The Semi-Integrated Street Light 1197 carries an IP65 weatherproofing rating, certifying complete dust ingress protection and resistance to directional water jets. IP65 is the appropriate outdoor standard for year-round deployment across India’s climate zones, covering the monsoon-heavy coastal regions of Kerala, Karnataka, and the Western Ghats as well as the high-dust semi-arid regions of Rajasthan, Gujarat, and western UP. The unit measures 38.5 × 13.5 × 10 cm — the most compact form factor in the semi-integrated series — with the 60mm pole-compatible bracket and wall bracket both included as standard. The semi-integrated design positions the LED body and battery on the pole arm bracket and the solar panel separately on an adjustable bracket arm, enabling the panel to be oriented at the optimal tilt angle for Indian latitudes, unlike fully integrated all-in-one units where panel angle is fixed to the LED housing orientation.
Smart Controls & Operating Modes

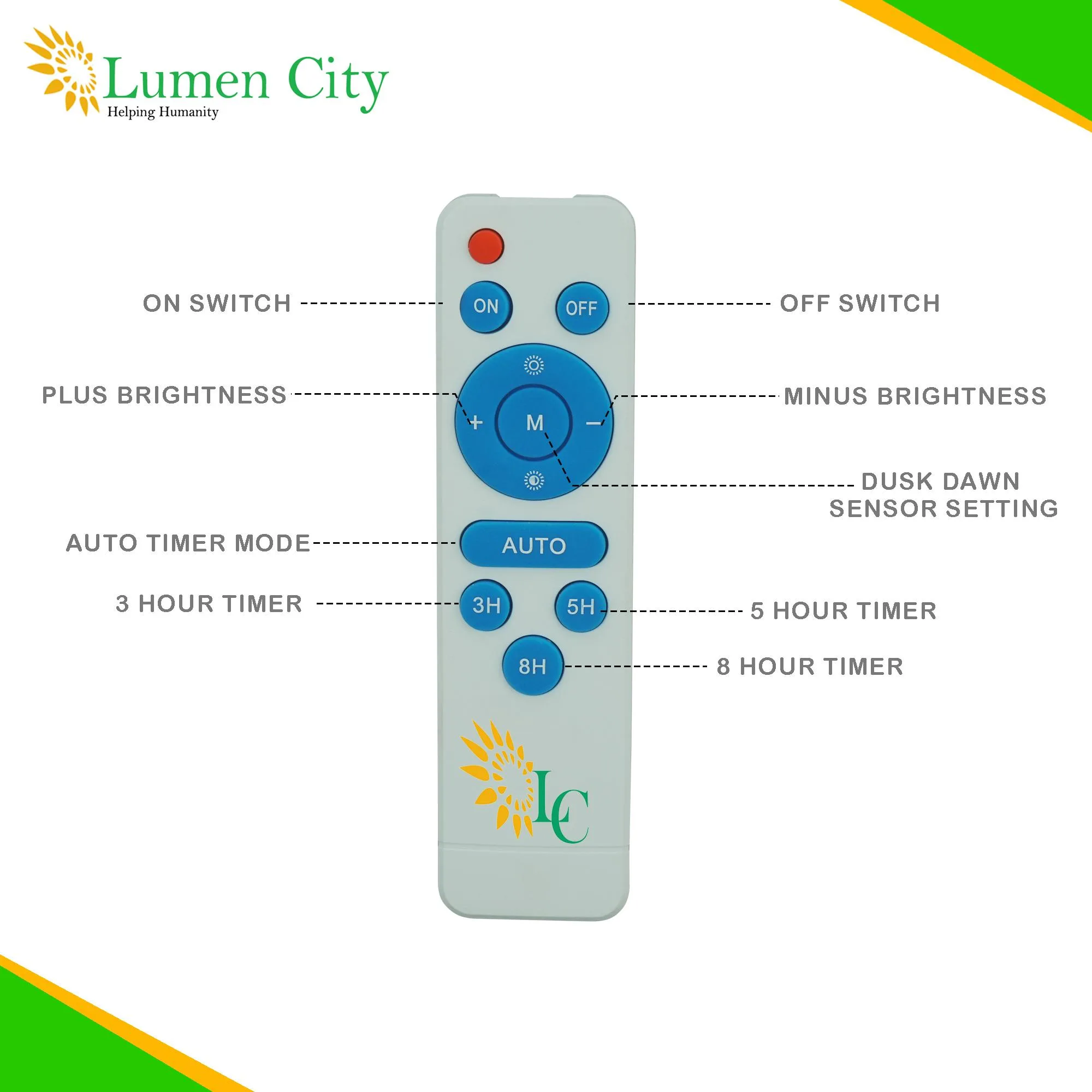

The Semi-Integrated Street Light 1197 is operated by a wireless remote control with multiple timed and sensor modes as specified on the product image. The Auto mode provides 100% brightness for the first 20 minutes, then 70% for 4.5 hours, followed by 30% for the remaining hours — an intelligent three-stage dimming sequence that extends the 12Ah LiFePO4 battery’s runtime across a full dusk-to-dawn cycle on low-activity colony lanes and rural village paths. The On/Off mode operates the light directly with dawn-to-dusk switching. The Sensor (3H) mode provides full brightness for 3 hours before switching to light-off. The 5H mode provides full brightness for 5 hours before switching off. The 4+4H mode delivers full brightness for 4 hours, followed by 4 hours in induction (motion sensor) mode. The 4+6H mode provides 4 hours full brightness then 6 hours induction mode. The Half light mode sets brightness to 50%. These modes cover the operational requirements for colony main lane lighting, housing society pedestrian paths, and rural panchayat road lighting in India.

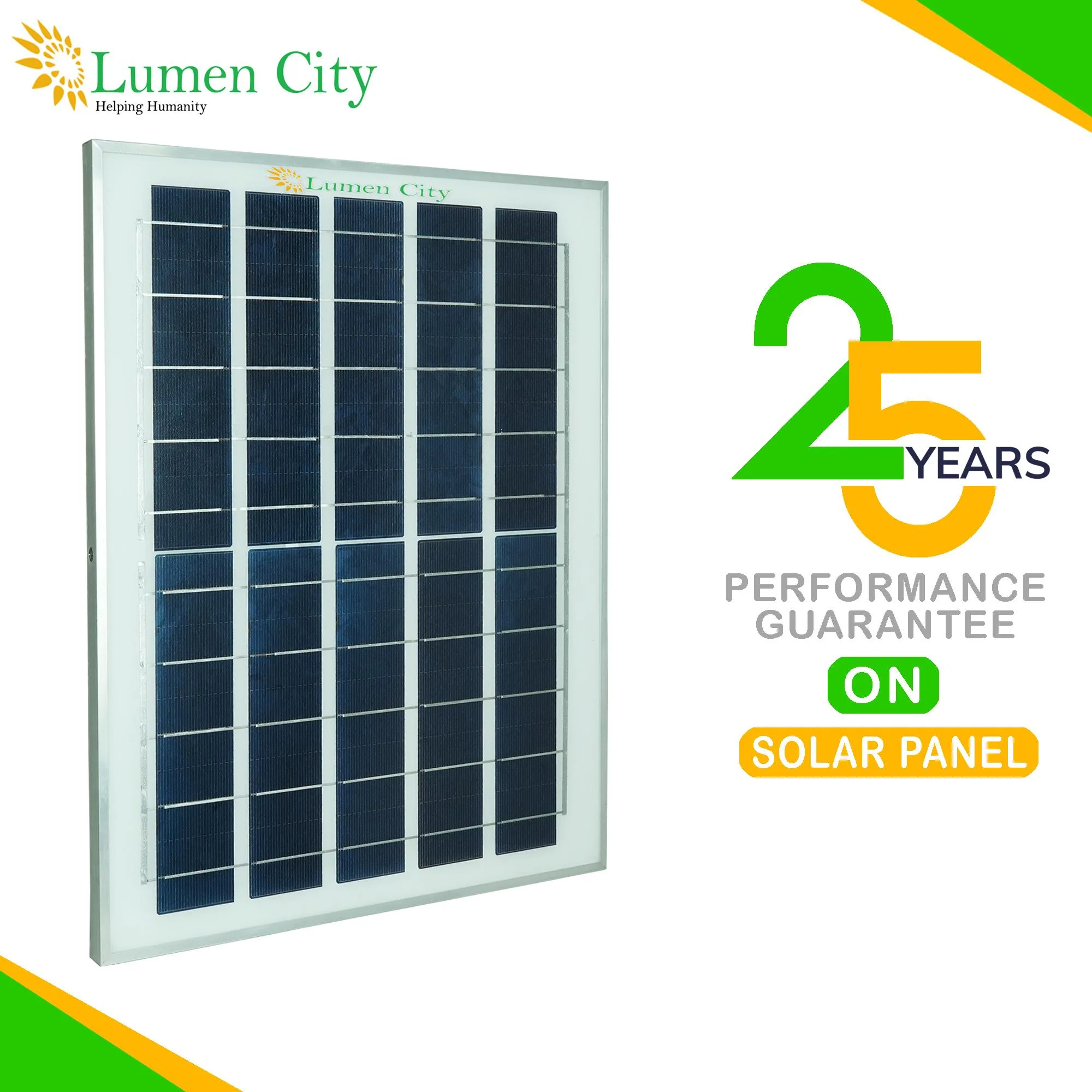

Solar Panel & Charging Efficiency
The 5V 14W monocrystalline solar panel in the Semi-Integrated Street Light 1197 charges the 12Ah LiFePO4 battery within 6–8 hours of direct sunlight. The semi-integrated design’s key advantage over all-in-one solar street lights is the ability to orient the panel independently of the LED fixture — the panel bracket arm can be adjusted to face true south at the optimal tilt angle for Indian latitudes (approximately 10–25° depending on location), maximising daily energy harvest across all seasons. Monocrystalline silicon cells at 19–22% conversion efficiency outperform the polycrystalline panels used in competing semi-integrated solar street lights at equivalent wattage on IndiaMart — a direct spec advantage confirmed by the 14W monocrystalline panel specification in the image versus the 12W polycrystalline panels used by the leading competing 12W semi-integrated product at the same price tier. This efficiency advantage is most significant during India’s June–September monsoon season when diffused irradiance reduces panel output.
Installation & Mounting

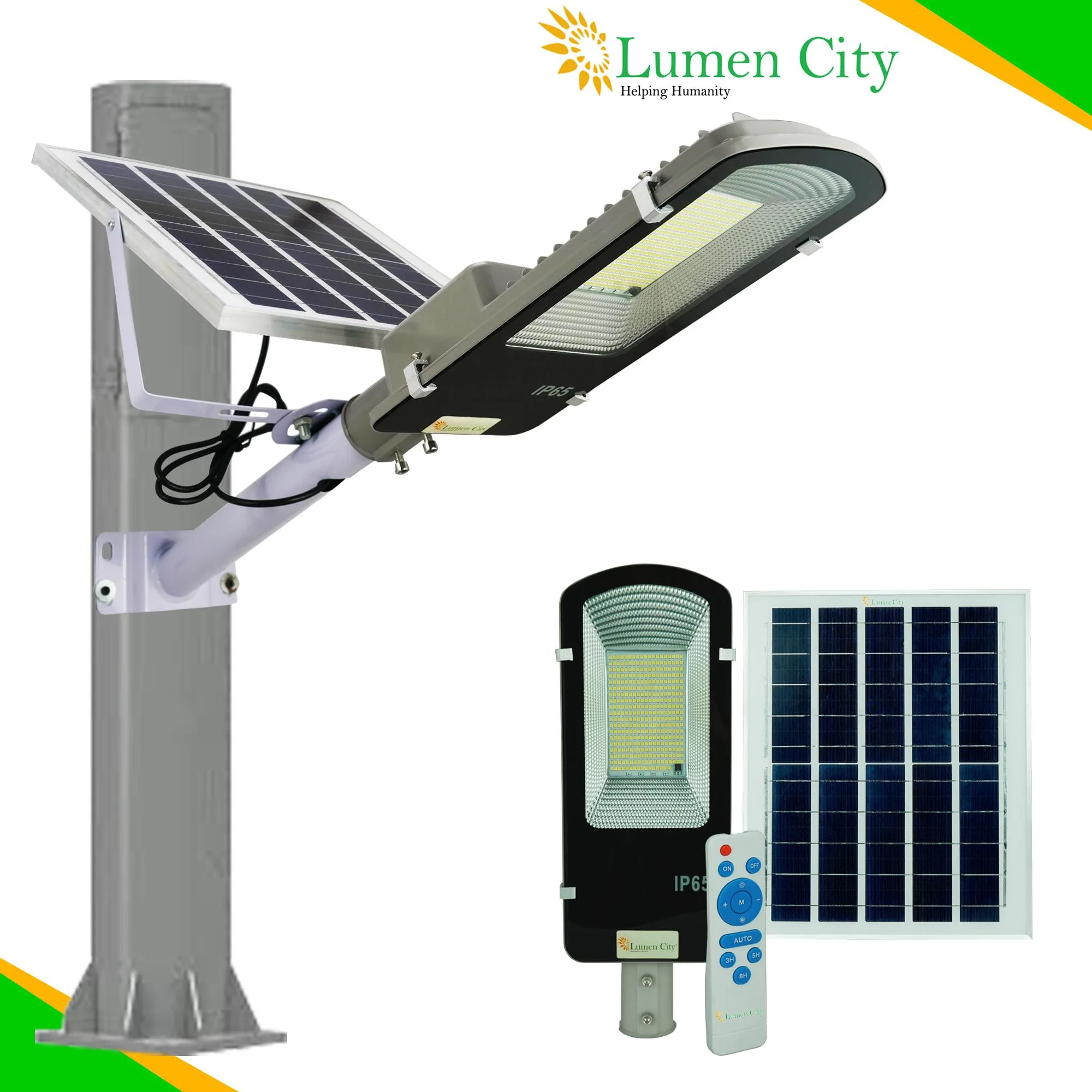

The Semi-Integrated Street Light 1197 installs without external grid wiring or underground cable trenching. The LED luminaire body and LiFePO4 battery unit mount on a 60mm diameter pole at 3 metres height via the included bracket. The monocrystalline solar panel mounts on a separate adjustable bracket arm on the same pole, enabling south-facing panel orientation independent of the LED housing direction. The included wall bracket provides an alternative installation method for masonry walls at 3 metres height, without requiring a dedicated pole. This wall-bracket option is directly relevant for housing society compound boundary walls, colony gate pillars, and farmhouse perimeter walls where pole installation would involve ground civil works disproportionate to the lighting requirement. With 1 unit per carton, the 1197 is procured individually for residential, colony, and panchayat applications rather than in bulk carton lots.
Technical Specifications

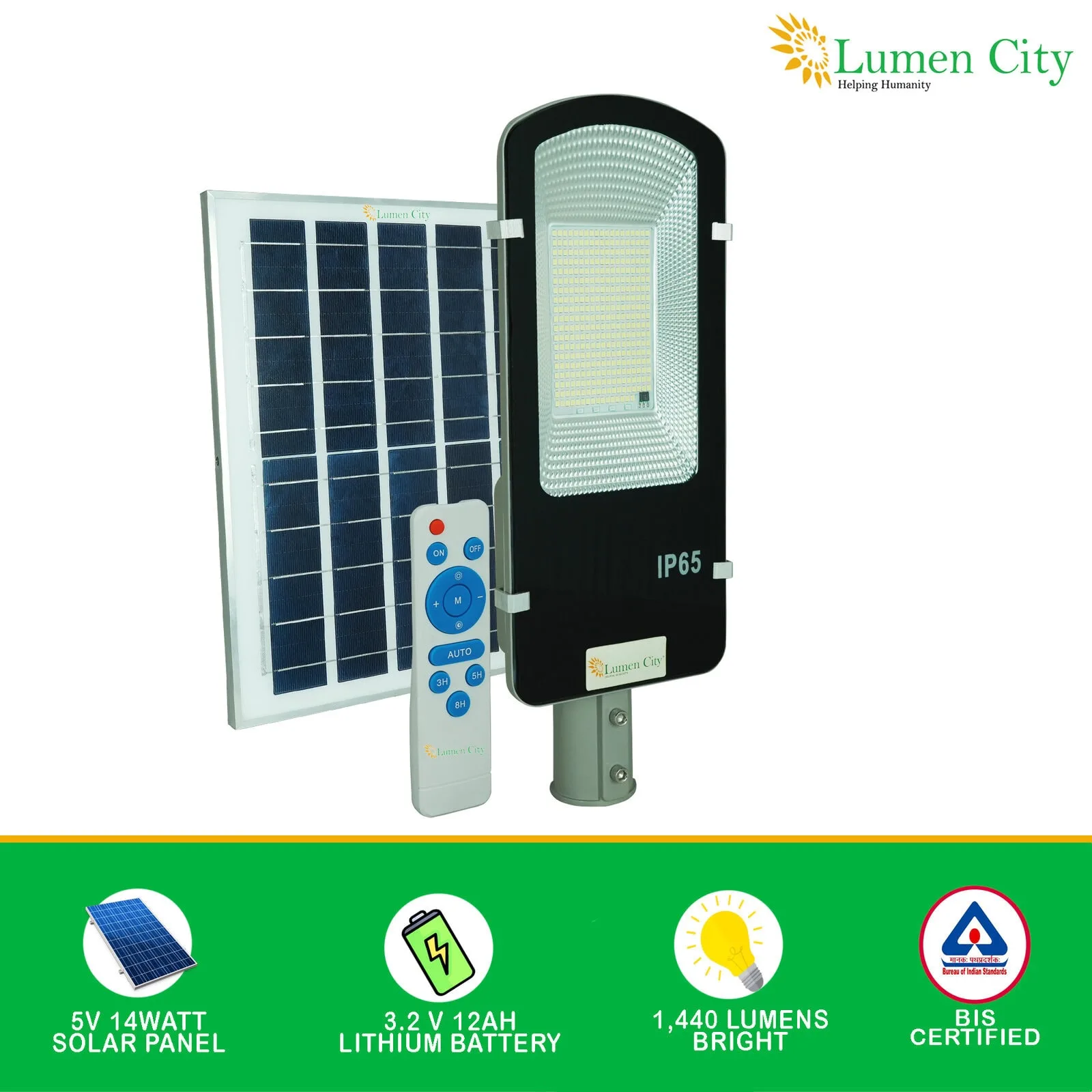

| Specification | 12W / Model 1197 / Semi-Integrated |
| Model | 1197 |
| LED | 358 Pcs 2835 LED |
| LED Power | 120W |
| Solar Panel | 5V 14W Monocrystalline |
| Battery | 3.2V 12Ah LiFePO4 |
| Charging Time | 6–8 Hours |
| Lighting Time | 12 Hours |
| Light Colour | Cool White |
| Pole Diameter | 60mm |
| Installation Height | 3 Metres |

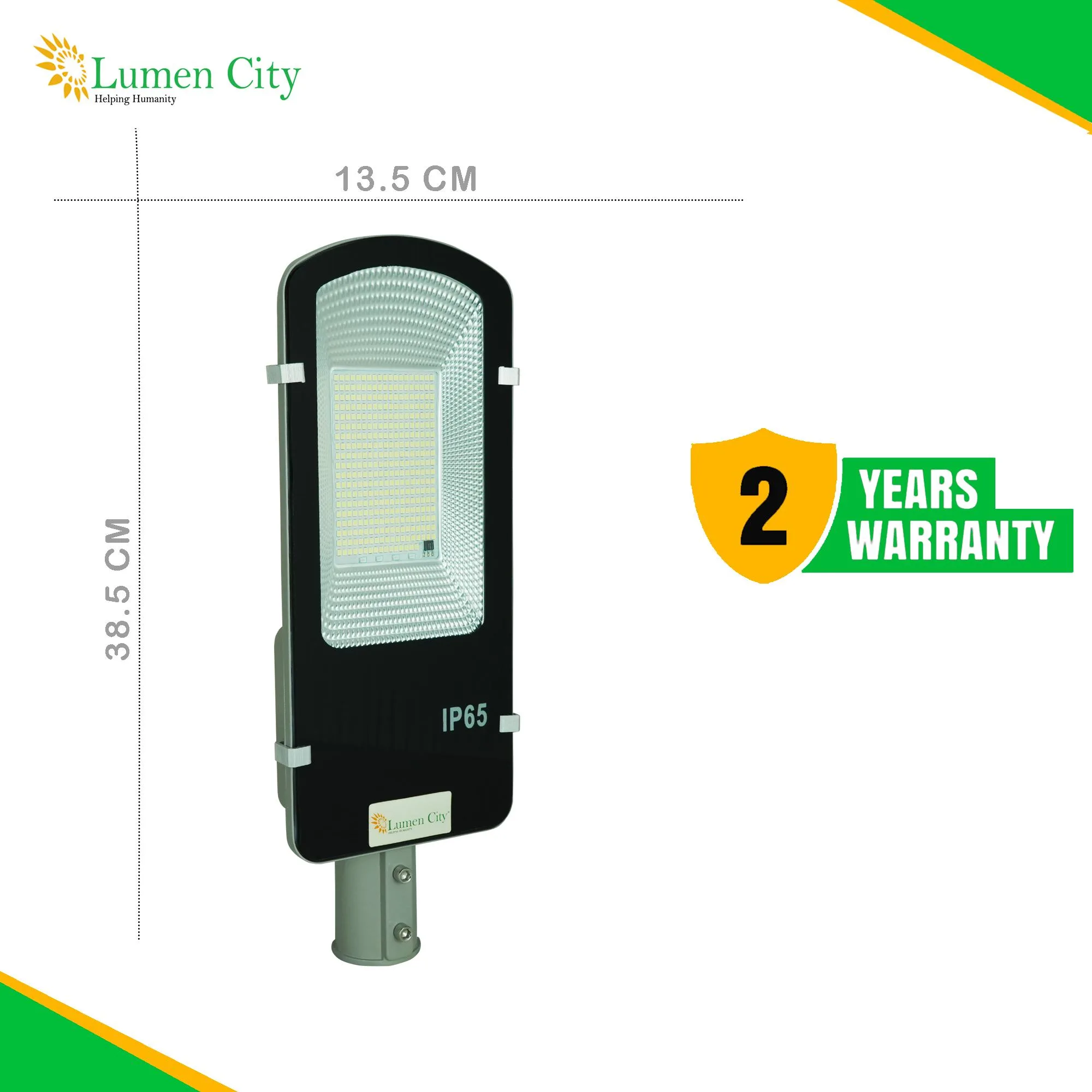

| Unit Size | 38.5 × 13.5 × 10 cm |
| Qty Per Carton | 1 Piece |
| Weatherproofing | IP65 |
| Wall Bracket | Included |
| Remote Control | Included |
Ideal Applications
- Housing colony internal lane and pedestrian footpath lighting
- Housing society compound boundary wall and gate pillar lighting
- Gated community internal alley and access path lighting
- Rural gram panchayat village lane and alley road lighting
- Farmhouse perimeter wall and garden access track lighting
- Small parking lot perimeter and two-wheeler zone lighting
- School campus boundary wall and internal footpath lighting
