12 Watt LED Wall Elevation Light 2+2 Way – EPISTAR | IP65 | Aluminium

Overview

The LED Wall Elevation / Step Light 2 Way 2+2 Lens Model (Model 1301) is a wired LED outdoor wall light in a wider 140 x 85 x 40 mm rectangular housing — significantly larger than the compact 75 x 75 x 50 mm Models 1300 and 1152 — designed for building elevation lighting, housing society compound boundary wall sections and entrance columns, hotel and resort exterior facade panels, commercial complex and office building exterior walls, housing colony entrance walls and gate piers, staircase accent lighting, and any Indian outdoor wall surface requiring a wider-format 2+2 multi-directional LED wall accent light. The 2+2 Lens configuration arranges four LED lenses in a 2+2 pattern — two pairs of directional lenses on the wider 140 mm housing face — producing the distinctive paired multi-directional beam pattern on the wall surface. EPISTAR/OSRAM LED chips, aluminium die-cast body, IP65 waterproofing, and 90-265V input apply equally to the Model 1301 as to the compact series.

LED Performance & Light Output – 2 Way 2+2 Lens Model

The LED Wall Elevation Light 2+2 Lens Model 1301 integrates EPISTAR/OSRAM LED chips in a 2+2 lens configuration across the wider 140 x 85 mm housing face — four lenses arranged in two pairs, producing a multi-directional wall accent pattern across the wider housing. The larger 140 mm housing width enables wider beam separation than the 75 mm compact models, producing a broader wall surface pattern appropriate for wider compound boundary wall sections, hotel facade panels, and office building elevation bays where the narrower 75 mm compact models would produce insufficient coverage. EPISTAR/OSRAM chip specification and 2700-6500K CCT range are consistent with the full wall elevation light series. The wider 140 mm housing provides greater LED coverage area while maintaining the 40 mm wall projection depth — slimmer than the compact models at 50 mm depth.

Body Build & Weatherproofing – IP65 Aluminium Die-Cast

The LED Wall Elevation Light 2+2 Lens Model 1301 measures 140 x 85 x 40 mm — the widest housing in the 4-model wall elevation light series, at 140 mm versus 75 mm for the compact models. Aluminium die-cast body with IP65 waterproofing. The wider 140 mm housing is appropriate for compound boundary wall sections of 20 cm width and above, hotel facade bay lighting, and office building elevation panels where the compact 75 mm models would be proportionately small. The slimmer 40 mm wall projection versus the compact models’ 50 mm depth provides a lower-projection profile on the wall surface. 90-265V AC input, EPISTAR/OSRAM LED chips, and aluminium die-cast IP65 body confirm the same premium material and electrical specification as the compact models in the series.

Input Power & Operating Specification – 90-265V AC

The LED Wall Elevation Light 2+2 Lens Model 1301 operates on mains AC power at 90-265V input. No solar panel, battery, or remote control is included. The wider 140 mm housing produces the 2+2 lens pattern at a scale appropriate for standard Indian compound boundary wall sections and hotel facade panels where the compact 75 mm models would be disproportionately small relative to the wall surface area. For building elevation lighting projects where the architect has specified the 2+2 configuration for wider wall bay positions, the Model 1301 delivers the appropriate wide-format LED pattern from an aluminium IP65 housing compatible with Indian mains electrical installation standards.

Mains Power – Not Solar

Not applicable — the LED Wall Elevation Light 2+2 Lens Model 1301 is mains-powered on 90-265V AC. No solar panel included.

Installation & Wall Mounting

The LED Wall Elevation Light 2+2 Lens Model 1301 requires mains wiring by a qualified electrician. The 140 x 85 mm housing mounts on compound boundary wall sections, hotel facade panels, and office building elevation positions using standard masonry fixings appropriate for the wider 140 mm footprint. For schemes where both compact (75 mm, Models 1300/1152) and wide-format (140 mm, Model 1301) wall elevation lights are specified at different wall positions, separate bracket specifications are required for each housing size.

Ideal Applications

• Housing society compound boundary wall 2 Way 2+2 Lens Model LED elevation lighting

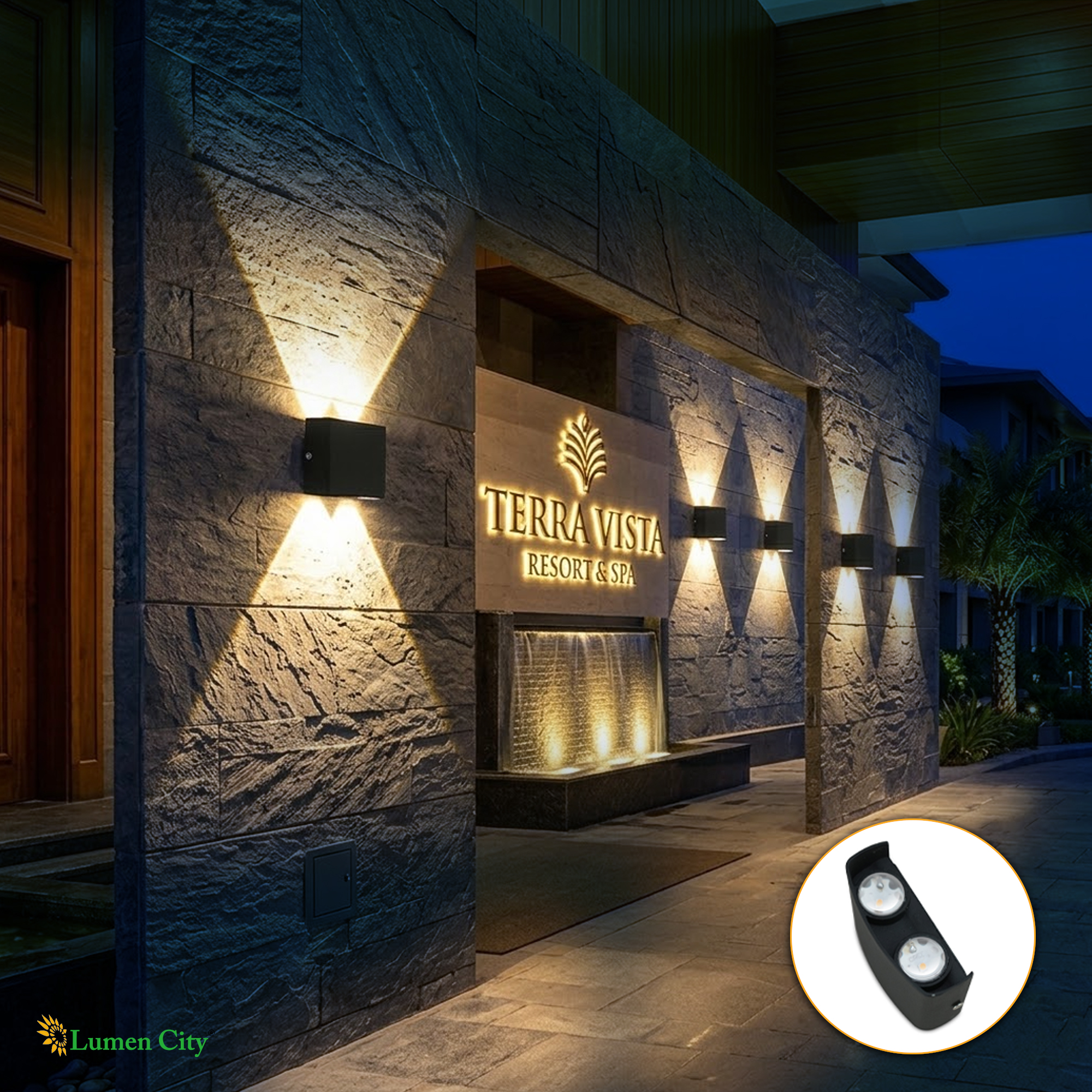

• Hotel and resort exterior facade panel and entrance wall LED accent lighting
• Office building and commercial complex exterior elevation LED wall lighting
• Housing colony main entrance wall, gate pillar, and compound boundary lighting
• Farmhouse exterior wall, porch, and estate entrance elevation LED lighting
• Staircase riser wall and step edge LED accent and safety lighting
• Shopping mall, hospital, school, and institutional building exterior wall lighting

Technical Specifications
