18 Watt LED Wall Elevation Light 3+3 Way – EPISTAR | IP65 | Aluminium

Overview

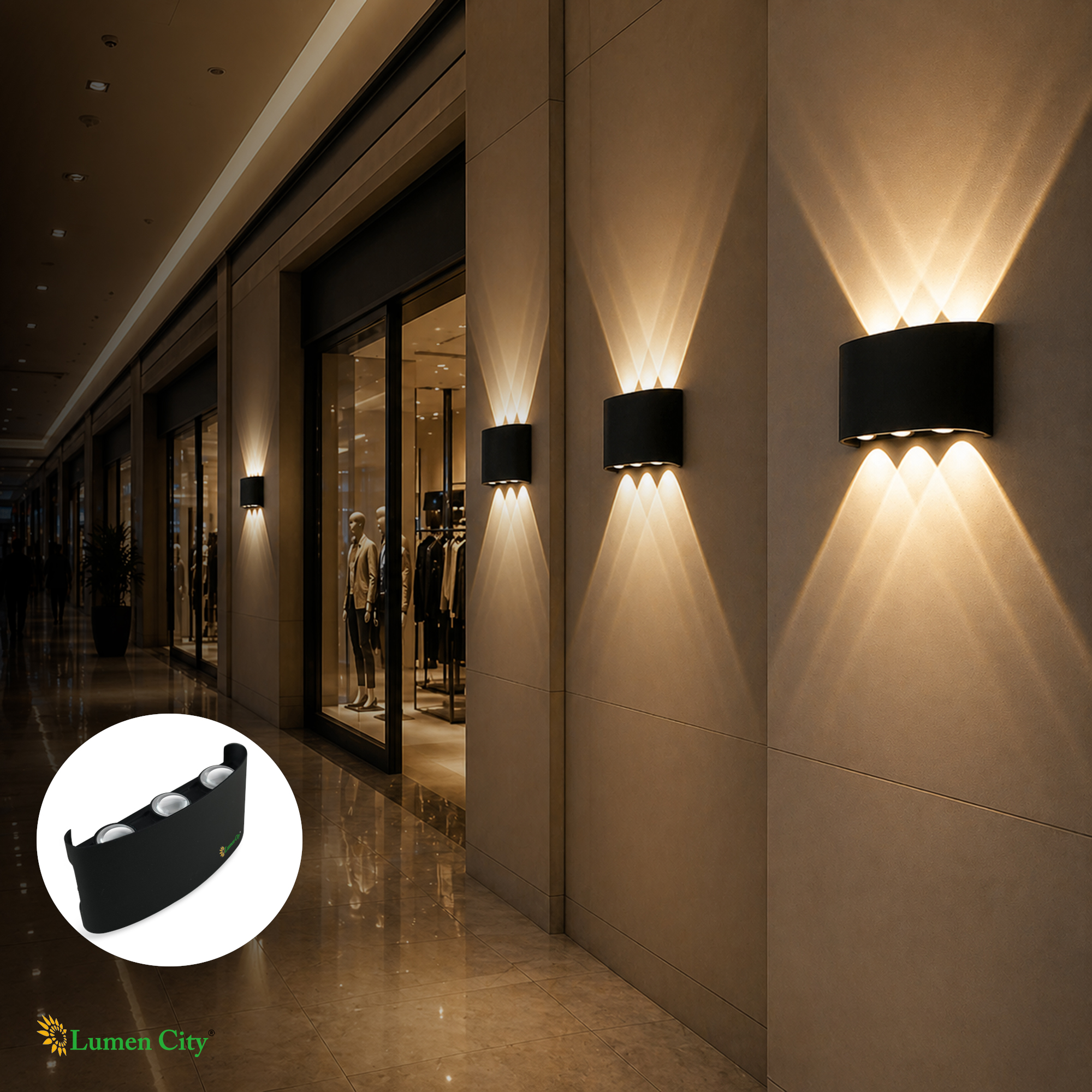

The LED Wall Elevation / Step Light 2 Way 3+3 Lens Model (Model 1302) is the widest model in the LumenCity wall elevation and step light series — a wired LED outdoor wall light in a 180 x 85 x 40 mm rectangular housing with six LED lenses in a 3+3 configuration. Designed for wide building elevation sections, housing society compound boundary walls, hotel exterior facade panels, commercial complex and office building exterior walls, housing colony wide entrance walls, and any Indian indoor or outdoor wall surface requiring the widest-format 3+3 multi-directional LED wall accent effect. At 180 mm width, the Model 1302 is the largest housing in the series, appropriate for wide compound boundary wall sections, wide hotel facade bay panels, and multi-bay office building elevation positions where the 140 mm Model 1301 and 75 mm compact models would provide insufficient coverage width. The 3+3 configuration arranges six LED lenses in two rows of three — producing the widest bi-directional wall surface beam pattern in the series.

LED Performance & Light Output – 2 Way 3+3 Lens Model

The LED Wall Elevation Light 3+3 Lens Model 1302 integrates EPISTAR/OSRAM LED chips in a 3+3 lens configuration — six lenses in two rows of three across the 180 x 85 mm housing face, producing the widest multi-directional beam pattern in the series. The 3+3 configuration produces three upper and three lower beam projections on the wall surface, creating the wide multi-beam wall elevation pattern appropriate for wide compound boundary wall sections, hotel facade panels, and office building elevation bays where narrower models in the series would produce insufficient horizontal beam spread. The 180 mm housing width provides the maximum beam separation in the series — 60 mm wider than the 2+2 Model 1301 and 105 mm wider than the compact models. EPISTAR/OSRAM chip specification and 2700-6500K CCT are consistent across the full series.

Body Build & Weatherproofing – IP65 Aluminium Die-Cast

The LED Wall Elevation Light 3+3 Lens Model 1302 measures 180 x 85 x 40 mm — the widest housing in the LumenCity wall elevation light series at 180 mm, 40 mm wider than the 2+2 Model 1301 and 105 mm wider than the compact models. Aluminium die-cast body with IP65 waterproofing. The 180 mm width is appropriate for wide compound boundary wall sections of 25 cm and above, hotel facade panels at multi-bay width, and office building elevation positions where the wider 3+3 beam pattern provides the required horizontal LED coverage. The shared 40 mm wall projection depth with the Model 1301 confirms the slim profile maintained across both wide-format models. 90-265V input, EPISTAR/OSRAM chips, and IP65 aluminium die-cast body confirm the same specification as all models in the series.

Input Power & Operating Specification – 90-265V AC

The LED Wall Elevation Light 3+3 Lens Model 1302 operates on mains AC power at 90-265V input. No solar, battery, or remote. The 180 mm housing produces the widest wall elevation LED pattern in the series — the 3+3 six-lens configuration at 180 mm width is appropriate for wide hotel facade panels, wide compound boundary wall sections, and multi-bay office building elevation positions where the narrower models in the series do not provide adequate horizontal beam coverage.

Mains Power – Not Solar

Not applicable — the LED Wall Elevation Light 3+3 Lens Model 1302 is mains-powered on 90-265V AC. No solar panel included.

Installation & Wall Mounting

The LED Wall Elevation Light 3+3 Lens Model 1302 requires mains wiring by a qualified electrician. The 180 x 85 mm housing mounts on wide compound boundary wall sections, hotel facade panels, and office building elevation positions using standard masonry fixings appropriate for the widest housing in the series. For mixed schemes with all four wall elevation light models across different wall bay positions, three housing sizes are used — 75 mm (compact), 140 mm (2+2), and 180 mm (3+3) — each requiring appropriate bracket specifications. The Indian electrical installation standards for outdoor wired LED wall lights apply to all four models identically.

Ideal Applications

• Housing society compound boundary wall 2 Way 3+3 Lens Model LED elevation lighting
• Hotel and resort exterior facade panel and entrance wall LED accent lighting
• Office building and commercial complex exterior elevation LED wall lighting
• Housing colony main entrance wall, gate pillar, and compound boundary lighting
• Farmhouse exterior wall, porch, and estate entrance elevation LED lighting
• Staircase riser wall and step edge LED accent and safety lighting
• Shopping mall, hospital, school, and institutional building exterior wall lighting

Technical Specifications

Specification	Model 1302  /  2 Way 3+3 Lens Model  /  Lens Model
Model	1302
Configuration	2 Way 3+3 Lens Model
LED Chip	EPISTAR / OSRAM
Input Voltage	90-265V AC
CCT	2700-6500K (warm to cool white)
IP Rating	IP65
Body Material	Aluminium Die-Cast
Outer Size	180x85x40mm
Wattage	18 Watt
Power Source	Mains AC (wired — NOT solar)
