24W/m flexible wall washer – IP65 | 3000K | 3 LED Cut

Overview

The 24W/M Flexible Wall Washer Light (Model 1141) is a continuous flexible LED luminaire designed for curved architectural surfaces, cove lighting profiles, column wrapping, and contoured facade applications where rigid linear wall washer bars cannot follow the surface geometry. Consuming 24 watts per metre with a density of 42 LEDs per metre, the 5-metre length provides a total of 210 LEDs across the complete unit. Operating on 24V DC with a 3000K warm white output, it produces a uniform, warm, continuous band of light at a 30° beam angle. The IP65 rating makes it suitable for outdoor and semi-outdoor architectural lighting. The 3 LED cut feature allows the strip to be shortened to fit specific installation dimensions without wasting unused length.

LED Performance & Light Output

The Model 1141 features 42 LED chips per metre in a continuous flexible array, producing 3000K warm white light that is widely used in architectural and hospitality lighting for its association with comfort, elegance, and visual warmth. At 24 watts per metre, the fixture delivers consistent lumen output across the full 5-metre length with no visible hot spots or brightness variation between LEDs. The 30° narrow beam angle channels light precisely onto the wall or ceiling surface being washed, creating a defined gradient of illumination that highlights architectural texture, material character, and surface detail. For interior cove lighting, arch profiling, column wrapping, and curved exterior facade applications in Indian hotels, restaurants, offices, and cultural spaces, this combination of warm colour temperature and narrow beam is a standard specification.

IP65 Rating – Dust & Water Protection

The IP65 rating on the Model 1141 flexible wall washer confirms protection against complete dust ingress and resistance to water jets from any direction. While flexible LED wall washers are frequently used in interior cove and architectural applications, IP65 compliance extends the application range to exterior curved facade surfaces, covered outdoor coves, pergola undersides, outdoor poolside architecture, and garden boundary wall lighting — all common in Indian hospitality, residential, and commercial architectural projects. The IP65 seal also provides protection against the humidity and condensation that can occur in indoor cove installations in kitchens, bathrooms, and pool areas in Indian hotels, resorts, and premium residential developments.

Flexible Body & 3 LED Cut Feature

The defining physical characteristic of the Model 1141 is its flexible strip construction, which allows the luminaire to conform to curved, arched, and irregular architectural surfaces that cannot be served by rigid linear wall washer bars. The flexibility of the strip housing enables it to wrap around columns, follow curved cornice profiles, line arched doorways and windows, and illuminate non-planar facade surfaces on heritage and contemporary buildings. The 3 LED cut specification means the strip can be shortened cleanly at every third LED position, giving installers precise control over the installed length to match the exact dimension of any cove, arch, or wall surface without leaving unused, unlit sections that would disrupt the visual continuity of the light band.

24V DC Power & Safe Operation

The Model 1141 operates on 24V DC, which requires a step-down power supply (driver) to convert India’s standard 220V AC mains supply to the 24V DC required by the strip. Operating at 24V DC rather than mains voltage is a safety advantage for architectural lighting installations in India where the fixture may be installed in locations accessible to members of the public, maintenance workers, or children — including cove lighting in commercial lobbies, hotel corridors, restaurant interiors, and housing society common areas. The low-voltage DC operation also reduces the risk of electrical hazard in damp or humid installation environments such as outdoor covered areas, pool surrounds, and bathroom or spa spaces in Indian hotels and resorts.

Ideal Applications in India

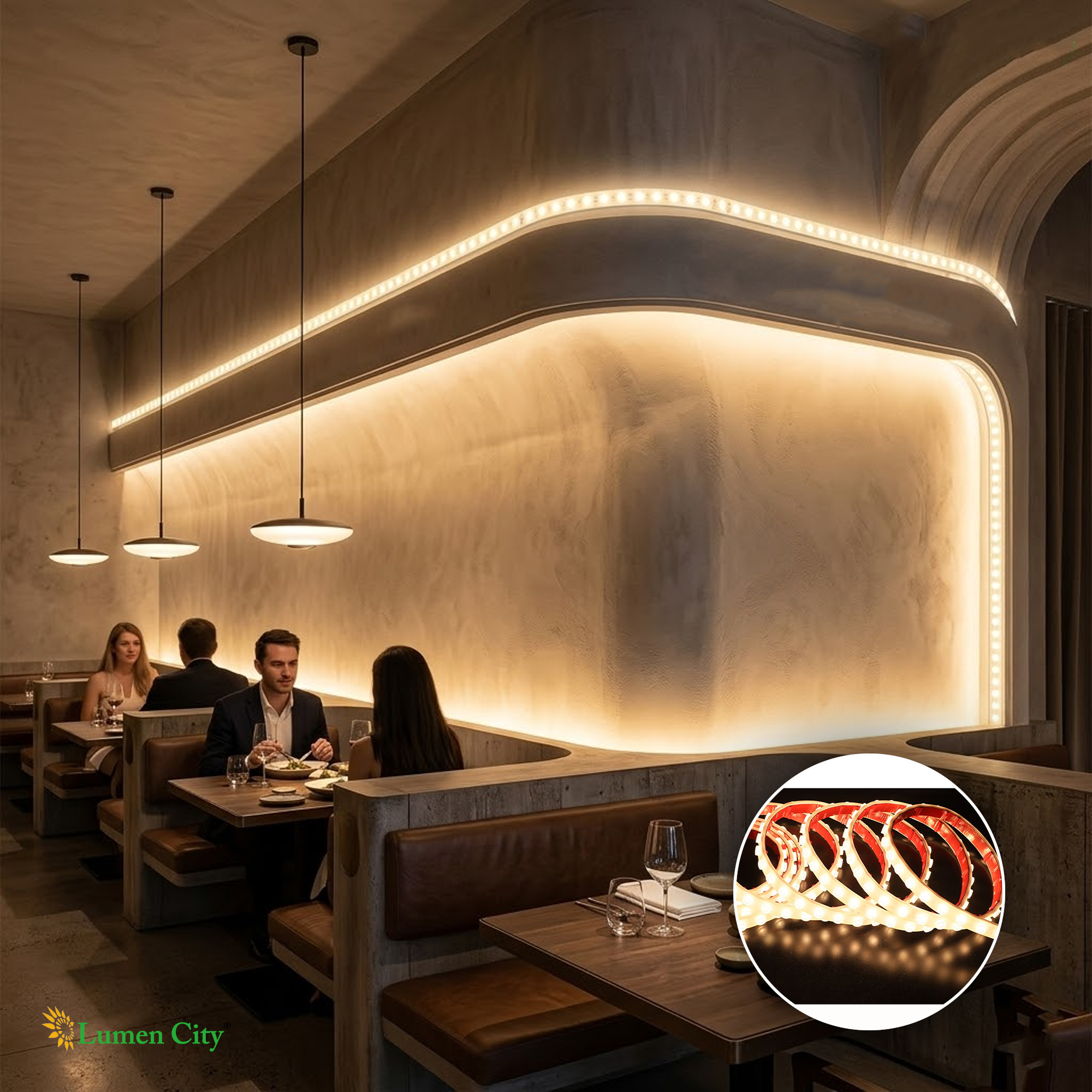

The flexible wall washer is suited for a wide range of interior and exterior architectural lighting applications across India. Primary applications include: cove lighting in hotel lobbies, restaurant dining areas, banquet halls, and corporate office reception areas; curved cornice and arch profiling in heritage building restoration projects across Rajasthan, Delhi, and Lucknow; column wrapping and pillar accent lighting in commercial malls, multiplex cinemas, and luxury residential towers; curved exterior facade lighting on contemporary commercial buildings; poolside and spa perimeter cove lighting in resorts and premium residential developments; garden boundary wall accent lighting on farmhouses and villa properties; and display niche and alcove lighting in retail showrooms and jewellery stores across India.

Installation & Mounting

The 24W/M flexible wall washer (Model 1141) is installed using aluminium profile channels or direct adhesive mounting on clean, dry architectural surfaces. For cove and cornice applications, the strip is typically seated within an aluminium extrusion profile that provides mechanical protection, a heat sink surface for thermal management, and a diffuser lens for even light output across the strip length. A 24V DC power supply matched to the total wattage of the installed length must be installed in a dry, accessible location connected to a standard 220V AC mains supply. The 3 LED cut feature allows the strip to be trimmed on-site to the exact required length before installation, avoiding the need for pre-cut factory lengths. The 5-metre standard length suits most single-run architectural cove and facade applications in Indian commercial and hospitality projects.

Technical Specifications
