10W Solar Street Light – Adjustable Panel | LiFePO4 Battery | Remote Control

Overview: 10W All-in-One Solar Street Light with Adjustable Panel

The 10W Solar Street Light (Model 1366) is a fully integrated, off-grid outdoor lighting solution designed for Indian roads, residential colonies, rural lanes, and commercial parking areas. Powered by 60 high-efficiency LEDs rated at 180–200 LM/W, it delivers a 50W luminous output using zero electricity from the grid. With an onboard 3.2V 5Ah LiFePO4 battery, a 5V 6W monocrystalline solar panel with adjustable tilt, and a full-featured remote control, this light is built for reliable 12-hour overnight operation straight out of the box.

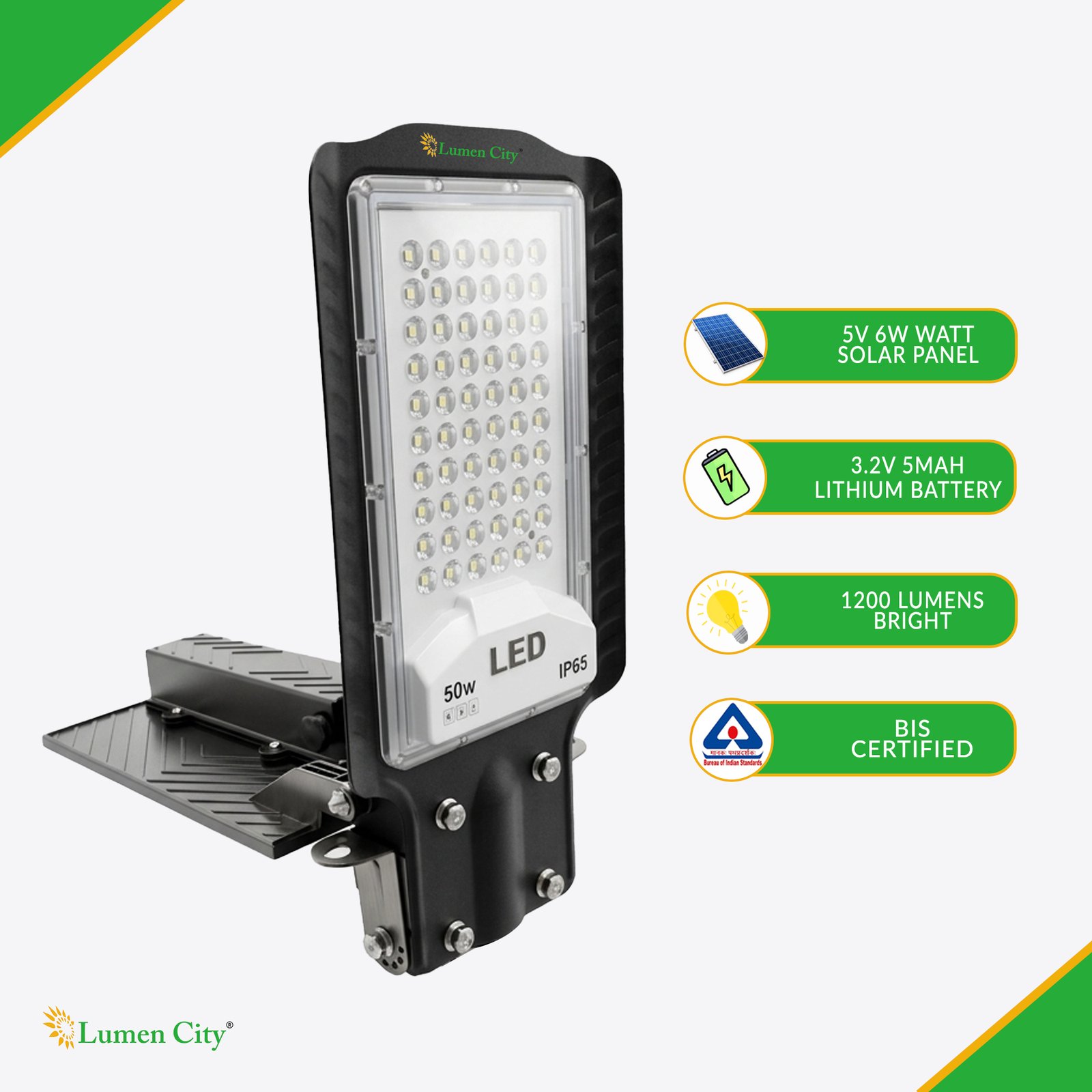

LED Performance & Light Output

This unit houses 60 LEDs with an efficacy of 180–200 lumens per watt — a figure that significantly exceeds conventional street lights and low-grade solar fixtures available in the Indian market. The light colour is Cool White, which delivers high colour contrast and better road visibility at night compared to warm white alternatives. At a rated LED power of 50W equivalent output, this fixture is well-suited for illuminating lanes up to 4 metres wide at a mounting height of 3 to 4 metres. The uniform light spread makes it ideal for narrow colony roads, farmhouse driveways, parking lots, and rural pathways where even illumination across the road surface is critical.

Battery – LiFePO4 5Ah Capacity & Backup

The 3.2V 5Ah LiFePO4 (Lithium Iron Phosphate) battery is a significant upgrade over lead-acid and standard Li-ion alternatives commonly used in budget solar street lights. LiFePO4 chemistry offers superior thermal stability, meaning the battery does not overheat in high-temperature Indian climates — a common failure point in lead-acid units used across Rajasthan, Gujarat, and Madhya Pradesh. LiFePO4 batteries also retain usable capacity through 2,000+ charge cycles compared to 300–500 cycles for lead-acid, translating to a substantially longer service life with minimal maintenance. The 12-hour lighting time means a single full charge powers the light from dusk to dawn throughout the year.

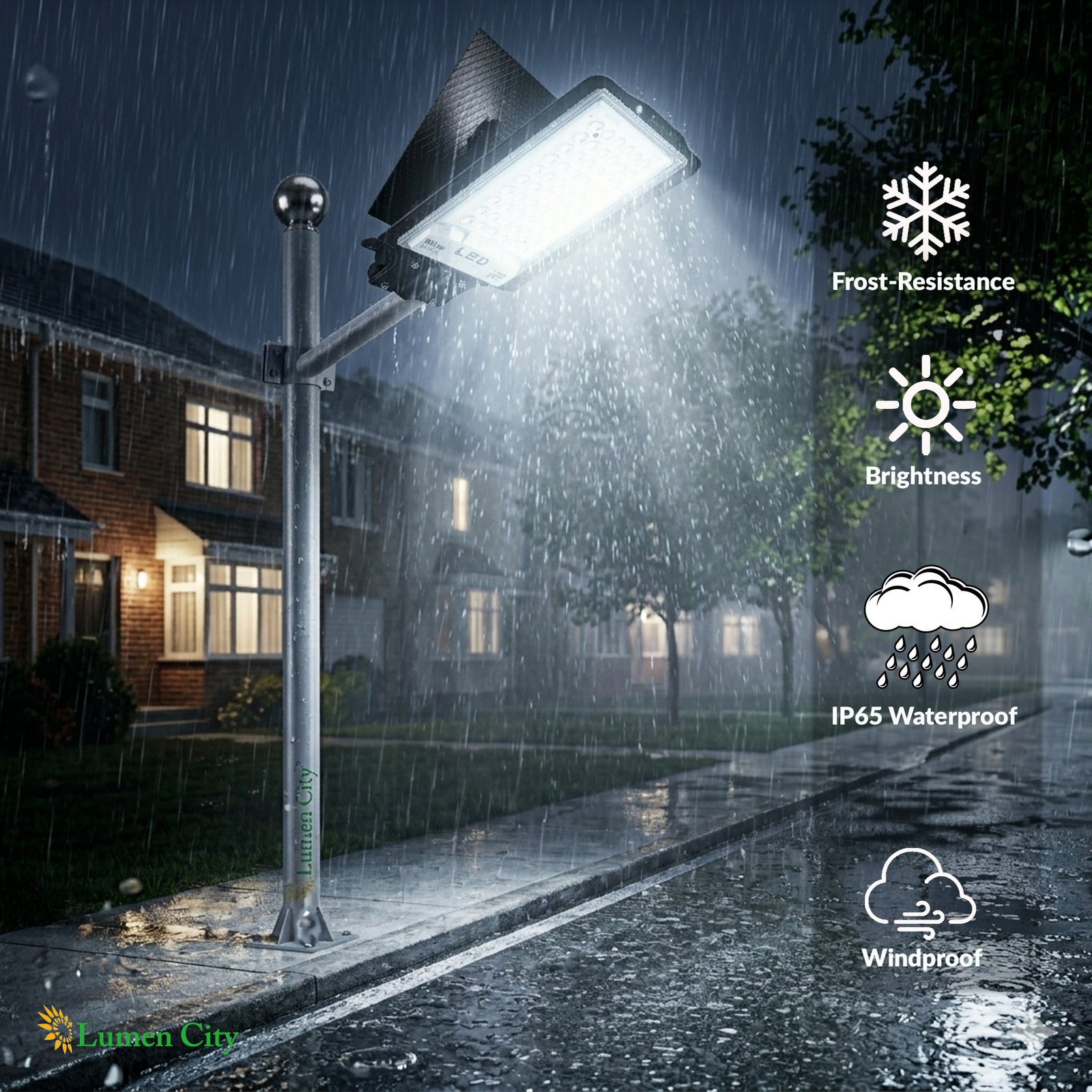

Body Build & Weatherproofing

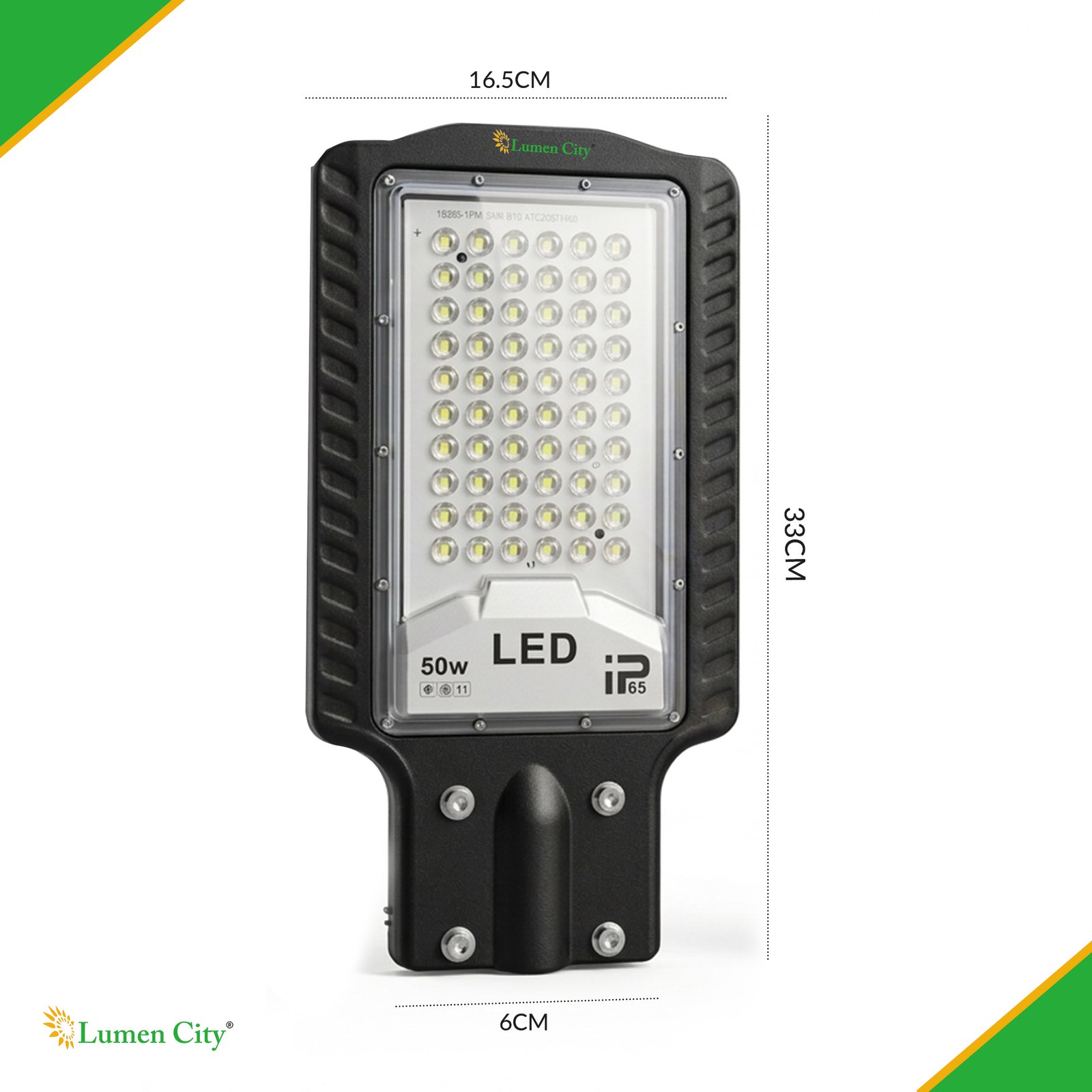

The fixture carries an IP65 weatherproof rating, making it fully protected against dust ingress and low-pressure water jets from any direction. This rating is suitable for Indian monsoon conditions, coastal areas, and high-humidity environments common in states such as Kerala, West Bengal, and Odisha. The compact body dimensions of 330×165×60mm allow easy integration on existing poles with a 40mm diameter. Whether installed in a housing society compound, a highway median, or on a rural road, the rugged construction ensures long-term outdoor durability without requiring periodic servicing.

Smart Controls & Operating Modes

The included remote control unlocks multiple programmable operating modes that allow precise energy management without manual intervention:

• OFF Mode: Switches the light off completely. Dawn to Dusk function also deactivated.
• ALWAYS Mode: Motion sensor off; Dawn to Dusk working — light stays on all night.
• INDUCTION Mode: Auto mode — motion sensor active; Dawn to Dusk working.
• 4H Mode: Motion sensor active for 4 hours; after 4 hours, switches to induction mode; runs Dawn to Dusk.
• 6H Mode: Motion sensor active for 6 hours; after 6 hours, switches to induction mode; runs Dawn to Dusk.

This flexibility makes the 10W solar street light suitable for high-traffic areas such as colony gates and parking lots (ALWAYS mode), as well as low-traffic lanes and farmhouse perimeters where sensor-triggered operation conserves battery charge.

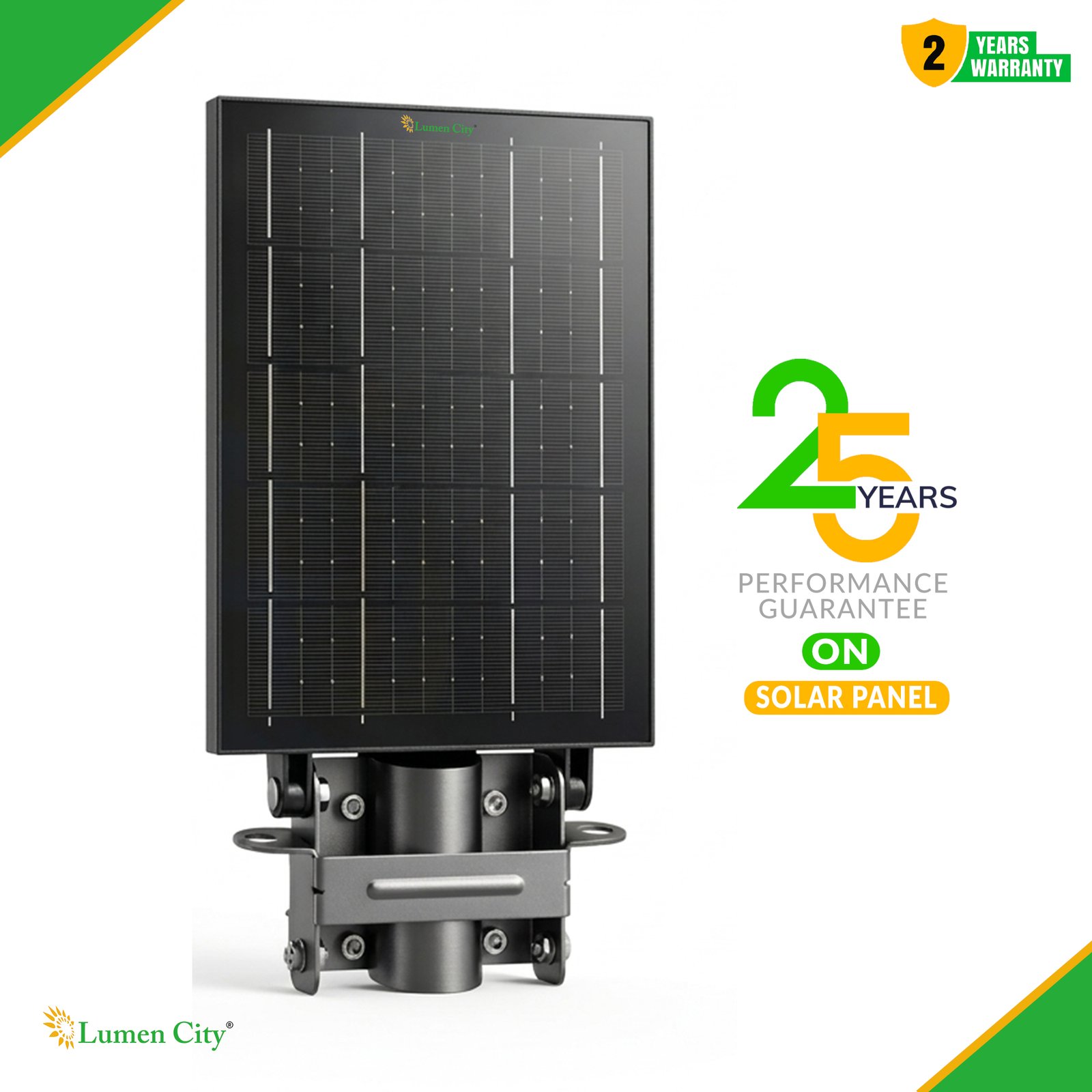

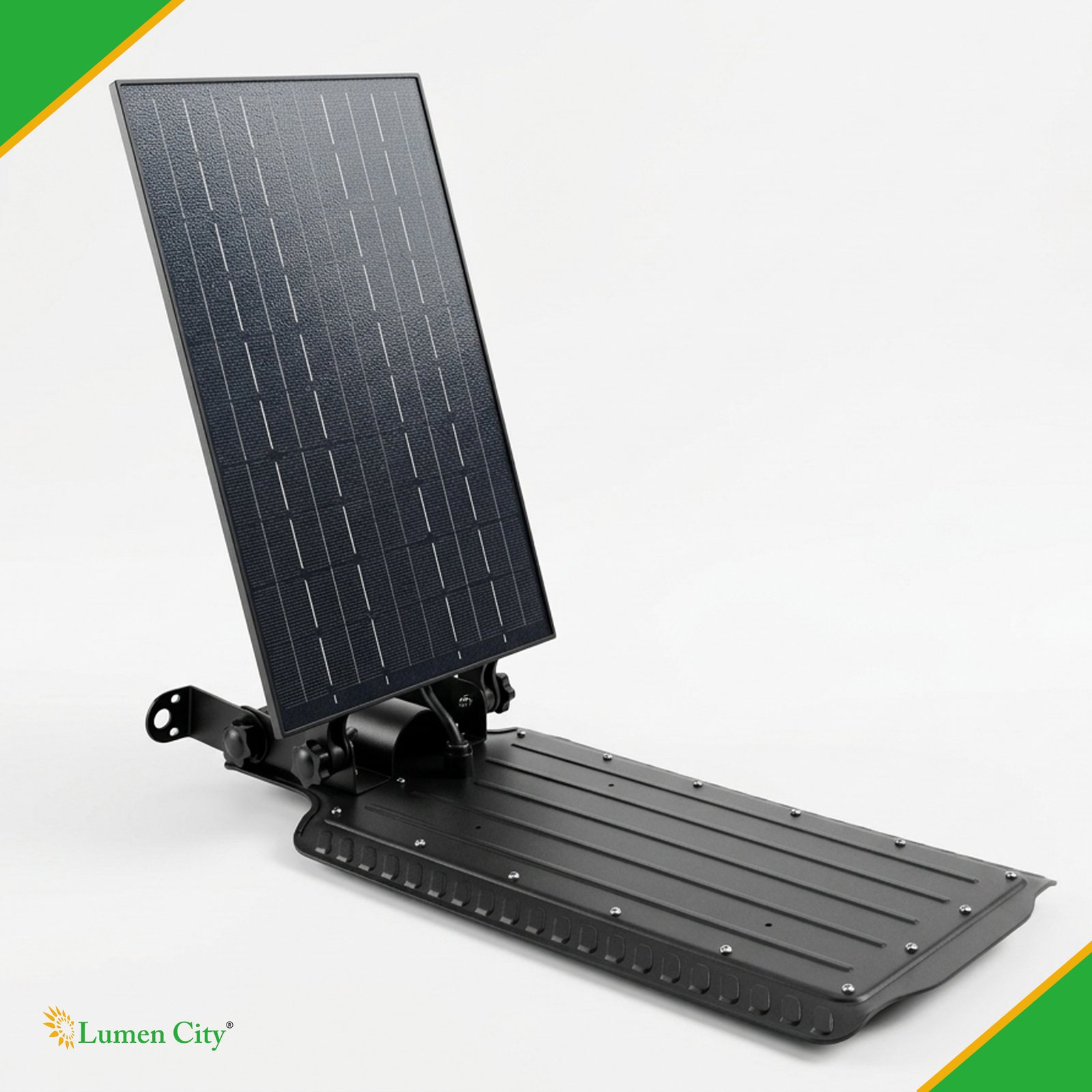

Solar Panel & Charging Efficiency

The 5V 6W monocrystalline solar panel is a critical differentiator in this product. Monocrystalline panels are manufactured from a single silicon crystal structure, which delivers higher light-to-electricity conversion efficiency compared to polycrystalline panels of the same physical size. This is particularly relevant in Indian conditions where available rooftop or pole-top space for the panel is limited. The panel charges the battery fully in 5–7 hours of direct sunlight, and the adjustable tilt bracket ensures the panel can be angled optimally towards the sun regardless of pole orientation — a feature absent in fixed-panel all-in-one lights.

Installation & Mounting

The 10W solar street light requires no electrical wiring, trenching, or grid connection whatsoever. It is designed for wall mount or pole installation at heights of 3 to 4 metres on poles with a 40mm diameter. The package includes all necessary mounting hardware. Installation is straightforward: mount the bracket, secure the fixture, angle the solar panel towards maximum sun exposure, and switch on. This makes it ideal for off-grid locations including rural roads under PM Gram Sadak Yojana, agricultural land perimeters, temporary construction site lighting, and highways where grid extension is not feasible.

Technical Specifications

Ideal Applications

This 10W solar street light is well-matched for low to medium-traffic outdoor areas across India, including residential colony internal roads, housing society pathways, rural village roads, small farmhouse entries, school and hospital perimeter walls, agricultural land borders, and temporary construction site lighting. Its compact size and wall-mount capability also make it a practical choice for narrow bylanes in urban areas where pole installation is restricted.
