100W slim flood light – IP65 | 12000 Lumens | Wide Voltage

Overview

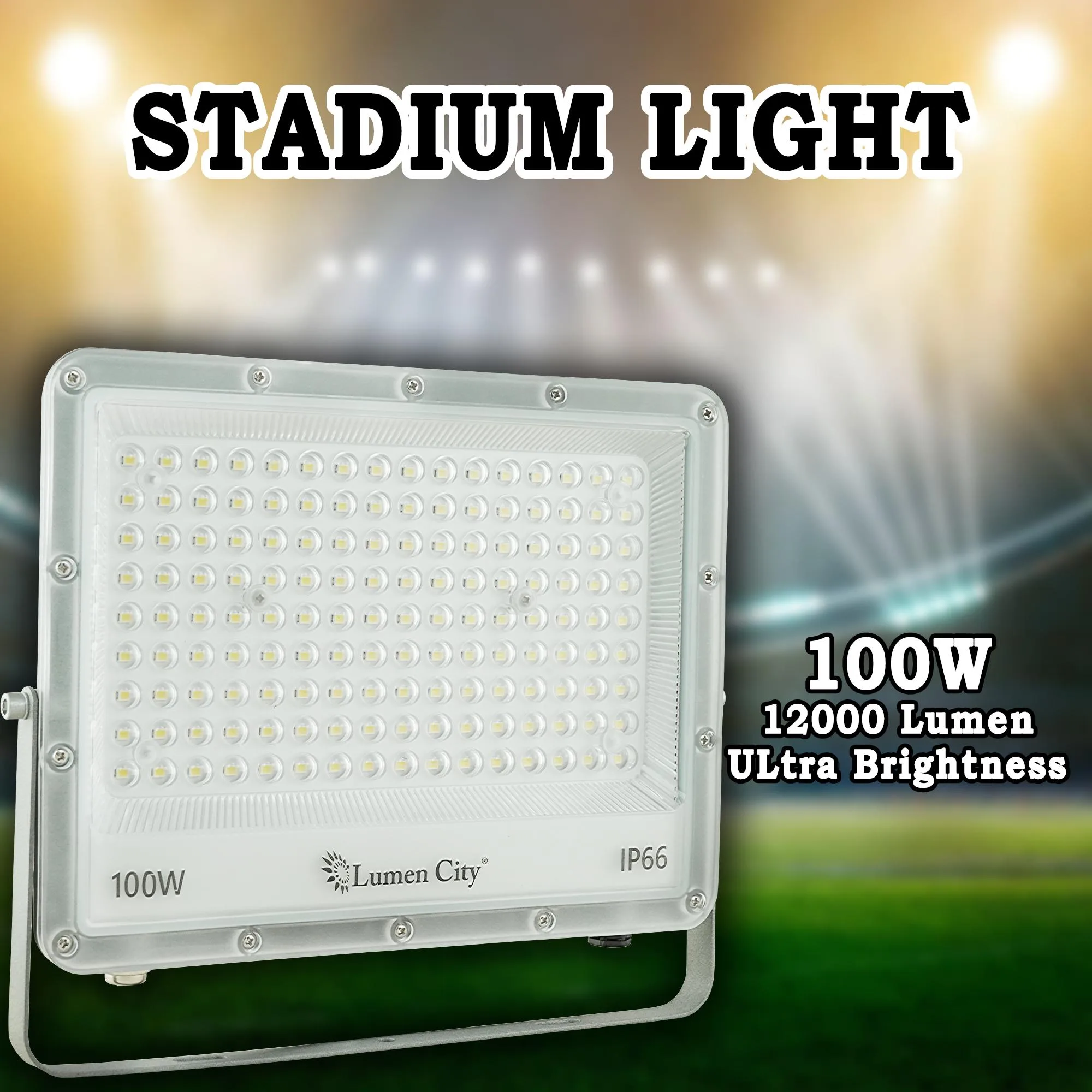

The 100W Slim LED Flood Light (Model 1173) is a mid-range outdoor industrial luminaire suited for medium-area floodlighting across commercial, industrial, and large residential applications in India. Delivering 12,000 lumens from 240 units of 2835 0.5W LEDs, it is designed for warehouse yards, factory compound perimeters, commercial parking lots, housing society driveways, and large building facades. The slim body measuring 30×28 cm provides a practical balance between light output and installation footprint. With a 90–265V input voltage range compatible with India’s variable grid supply, this fixture operates reliably in both urban industrial estates and semi-rural commercial zones without requiring voltage stabilisation equipment.



LED Performance & Light Output

The Model 1173 is driven by 240 units of 2835 0.5W SMD LEDs, producing a combined 12,000 lumens of bright outdoor light from 100 watts of electrical input. This lumen output makes it an efficient replacement for conventional 250W–300W sodium vapour or metal halide flood lights previously used in Indian factory yards, parking areas, and outdoor commercial zones. The 2835 SMD chip platform is recognised for long-term lumen stability, low heat generation per chip, and resistance to thermal degradation under continuous overnight outdoor operation. For Indian buyers comparing 100W LED flood lights for parking lots, yard lighting, or building exterior illumination, the 12,000-lumen output of the Model 1173 covers medium to large outdoor areas effectively.



IP65 Rating – Dust & Water Protection

The IP65 rating on the Model 1173 confirms complete dust ingress protection and resistance to water jets from all directions — the standard requirement for outdoor flood lights permanently installed across Indian commercial and industrial environments. Warehouse yards, factory compounds, petrol station forecourts, outdoor sports grounds, highway toll plazas, and large housing society parking areas all require IP65-rated fixtures capable of withstanding India’s seasonal monsoon rainfall, coastal humidity, and dusty dry-season conditions. The IP65 seal protects the LED driver, wiring connectors, and chip array from moisture ingress that would otherwise cause premature failure in continuous outdoor operation.



Slim Body Build & Build Quality

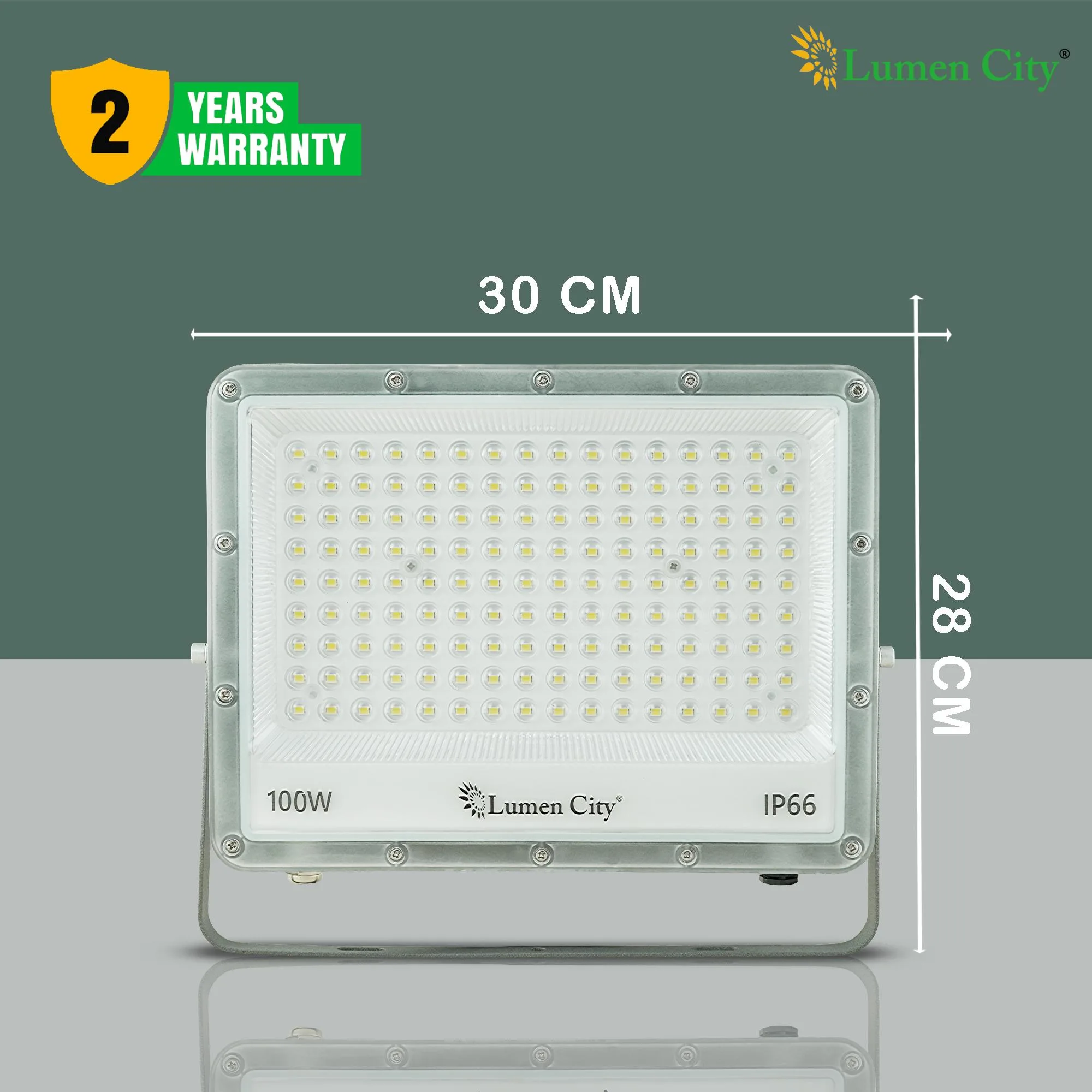

The 100W Model 1173 uses a slim rectangular housing measuring 30×28 cm, engineered to minimise visual bulk while delivering 12,000 lumens of functional outdoor illumination. The slim profile reduces wind loading on pole-mounted installations, an important consideration for flood lights installed on free-standing poles in open yard and parking area environments subject to strong seasonal winds across India. The housing incorporates passive thermal management through the aluminium back panel, which dissipates heat from the 2835 LED chips without fan mechanisms that could fail in dusty industrial environments. This ensures consistent lumen output and extended operational life under continuous outdoor use in Indian commercial and industrial settings.



Wide Voltage Compatibility – 90–265V Input

The 90–265V input voltage range of the 100W slim flood light is a key specification for large-scale outdoor installations in India, where power supply quality varies significantly between locations. Warehouse yards and factory compound lighting in tier-2 and tier-3 industrial cities — including Kanpur, Ludhiana, Coimbatore, Rajkot, and Aurangabad — frequently experience voltage sags and transient spikes from heavy industrial loads on the local distribution network. This fixture operates across the full voltage range without auxiliary stabiliser equipment, reducing installation cost and complexity for large outdoor lighting projects. It is equally reliable when connected to stable urban grids in metro industrial zones or to weaker rural supply in agricultural compound and godown lighting applications.



Ideal Applications in India

The 100W slim LED flood light is best suited for medium to large outdoor areas requiring reliable, high-output illumination across India. Primary applications include: warehouse and logistics yard floodlighting in major industrial corridors; factory compound perimeter and security lighting; large commercial parking lots in shopping centres, hospitals, and office complexes; highway petrol station and service area illumination; housing society and gated colony driveway floodlighting; outdoor sports grounds including cricket practice nets, volleyball courts, and football grounds; large farmhouse compound lighting; and building facade and signage illumination for commercial properties.



Installation & Mounting

The 100W slim flood light (Model 1173) supports wall bracket, pole, and surface mounting using standard outdoor luminaire hardware. The 30×28 cm slim body is compatible with adjustable tilt brackets for directing the beam angle across yards, parking areas, and building facades as required. Electrical connection is straightforward within the 90–265V supply range with no external driver box or stabiliser required. For large industrial or commercial outdoor lighting projects deploying multiple units, the consistent form factor and standard mounting footprint of the Model 1173 simplify installation planning, spacing, and alignment across large yard or parking grid layouts, reducing deployment time and labour costs for electrical contractors.





Technical Specifications



Parameter	Specification
Model No.	1173
Power	100W
Input Voltage	90–265V AC
LED Type	2835 0.5W
Number of LEDs	240
Lumen Output	12,000 lm
Body Size	30 × 28 cm
IP Rating	IP65
Style	Slim Model
