5W Solar Bollard Garden Light – 3-in-1 RGB | Remote | IP65

Overview

The 5W Solar Bollard Garden Light Big Diamond Model (Model 1298) is an all-in-one, off-grid solar garden bollard designed for housing colony main garden pathways, housing society compound walkways, hotel and resort garden path borders, farmhouse garden driveway edges, large residential front garden paths, and any Indian outdoor garden environment requiring high-output warm white, cool white, natural white, or RGB colour-changing bollard lighting with remote control. At 5W SMD output, the Big Diamond is the highest-wattage SMD bollard in the LumenCity garden range. Featuring a 3-in-1 plus RGB light colour system, a 3.7V 2200mAh lithium battery providing 8-12 hours of illumination, wireless remote control with timed modes, and IP65 weatherproofing, the Big Diamond Model 1298 delivers the most capable specification in the LumenCity solar bollard range. At 67 x 18.5 x 18.5 cm, it is also the widest-footprint and tallest bollard in the range. A 5V 3W monocrystalline solar panel charges the battery within 6-8 hours. Floor mount installation requires no wiring or grid connection. At 6 units per carton, the 1298 targets housing society garden scheme procurement and hotel resort landscape projects.

LED Performance & Light Output –5W SMD, 3-in-1 + RGB

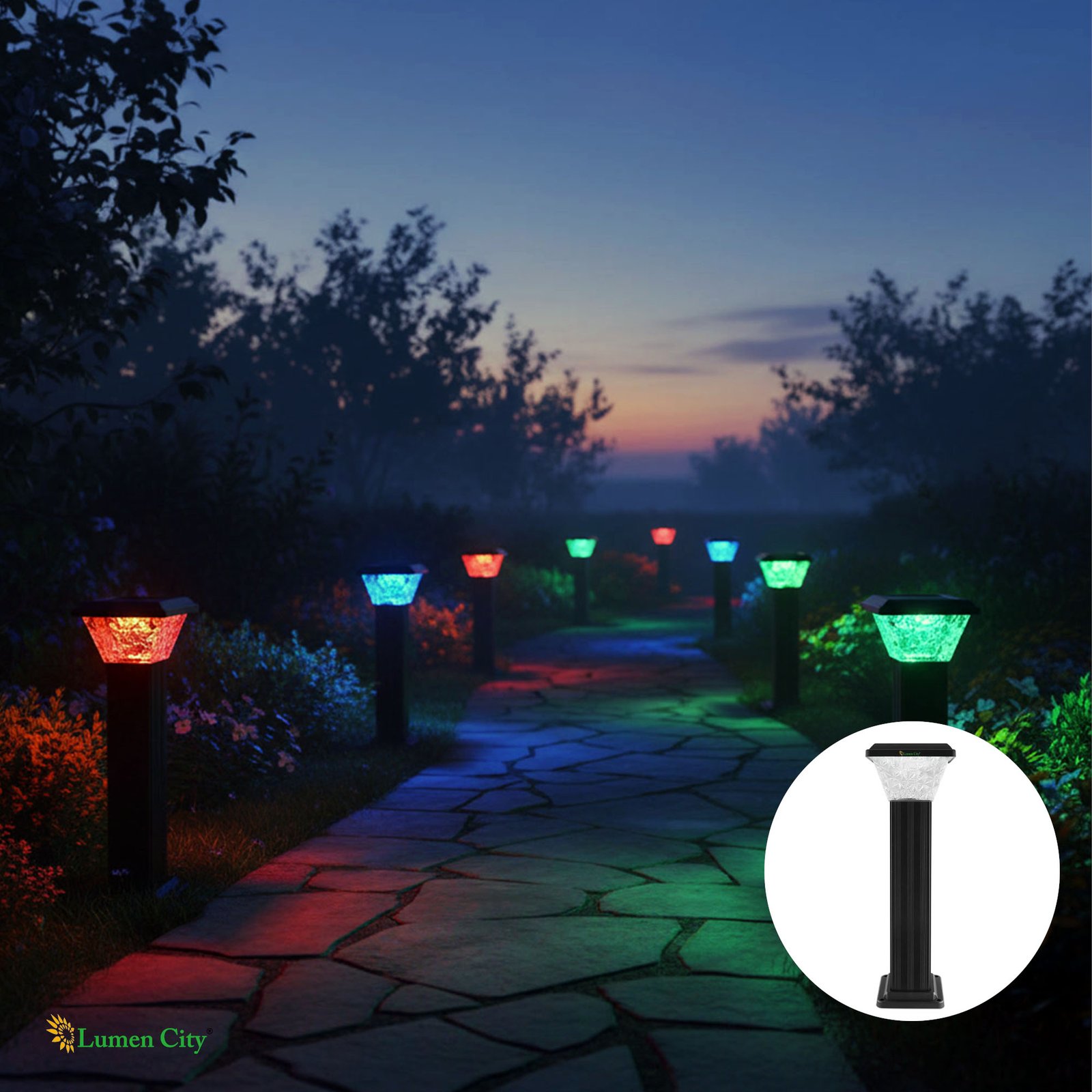

The Solar Bollard Big Diamond Model 1298 integrates a 5W SMD LED array delivering 3-in-1 plus RGB light colour — the same versatile four-mode colour specification as the Mini Diamond Model 1340 but at 5W output versus the 1340’s 5W. The 3-in-1 mode provides three selectable white colour temperatures: Warm White (approximately 2700-3000K) for amber filament-inspired ambience; Cool White (approximately 5000-6500K) for crisp, bright path visibility; and Natural White (W mode) for a neutral daylight-balanced output. The RGB mode adds full colour-changing capability. At 5W SMD output, the Big Diamond delivers the highest LED output in the LumenCity garden bollard range — double the 5W of the Mini Diamond 1340 and significantly above the Tungsten Style bollards (1341-1345) where individual LED wattage is not confirmed. The large 18.5 x 18.5 cm square housing accommodates the 5W SMD array across a broader LED board, producing a wide-angle even illumination pattern at the 670 mm bollard height that is appropriate for wide housing society compound walkways and main garden paths of 2-3 metres cross-section.

Battery – 3.7V 2200mAh Lithium Capacity & Backup

The 3.7V 2200mAh lithium battery in the Solar Bollard Big Diamond Model 1298 is the largest battery capacity in the LumenCity garden bollard range — equal to the Mini Diamond 1340 and above the 2000mAh Tungsten Style bollards. At 2200mAh powering a 5W SMD array, the Big Diamond requires the intelligent remote-timed operating modes to achieve 8-12 hour operation: at constant full 5W output without timed management, the 2200mAh battery would be depleted in approximately 7-8 hours. The 2H, 4H, 6H, and 8H remote timed modes address this directly — enabling buyers to configure the Big Diamond for full-output operation during the required peak hours and automatic switch-off thereafter, extending effective battery life across the full dusk-to-dawn cycle without dimming. The 3.7V Li-ion cell provides the energy density required for the compact 67 x 18.5 x 18.5 cm housing at 5W output. As confirmed in the specification: lighting time depends on working mode and battery charging.

Body Build & Weatherproofing

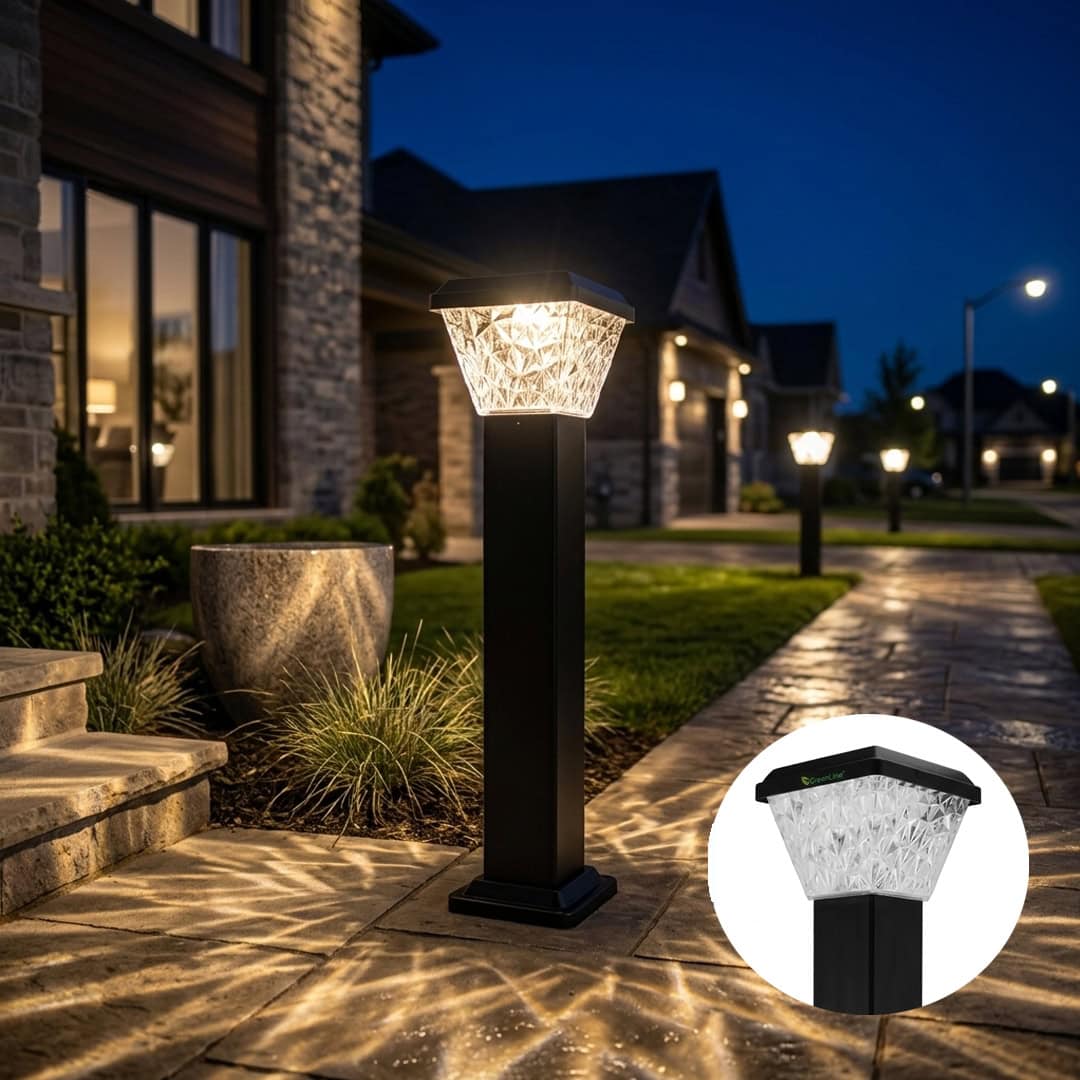

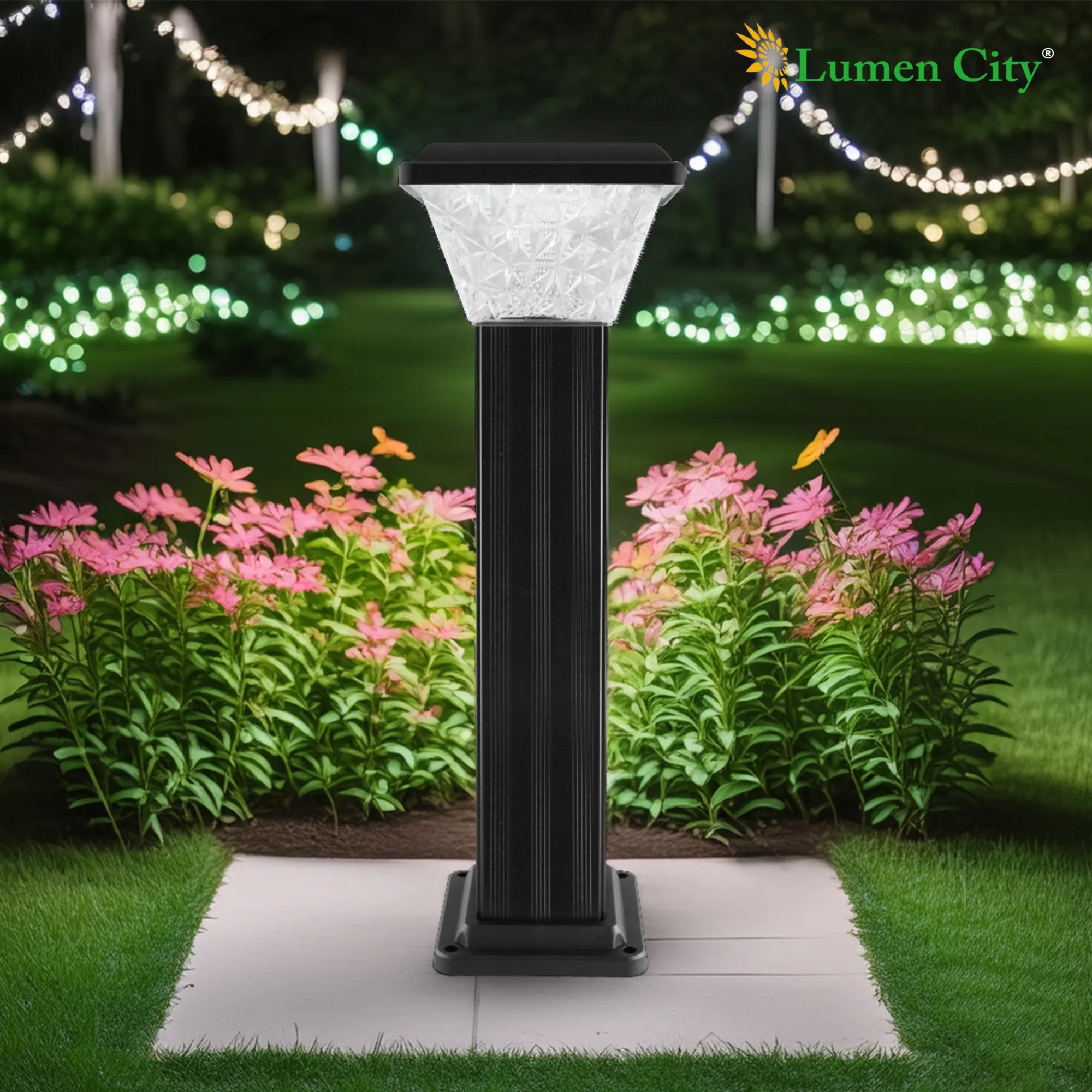

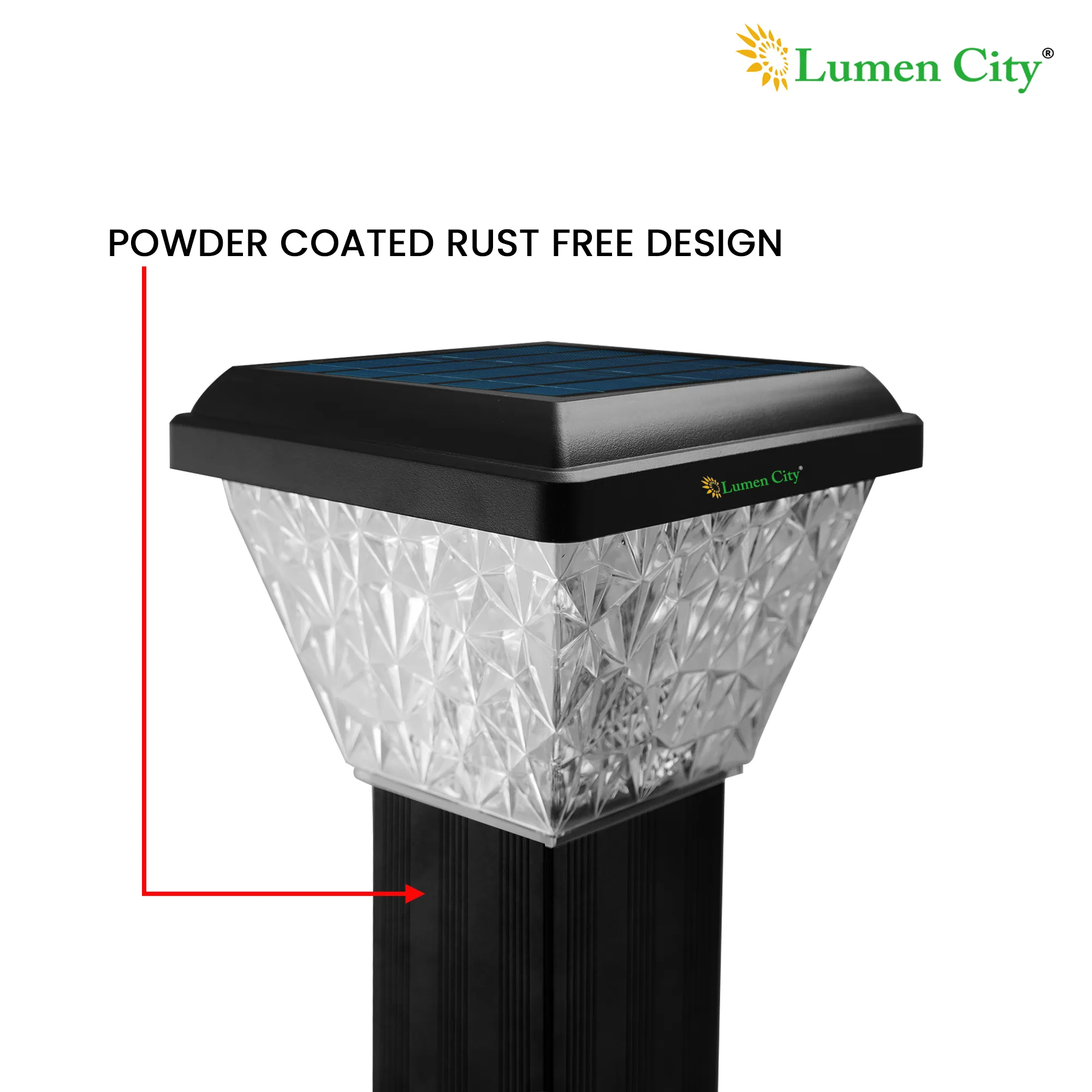

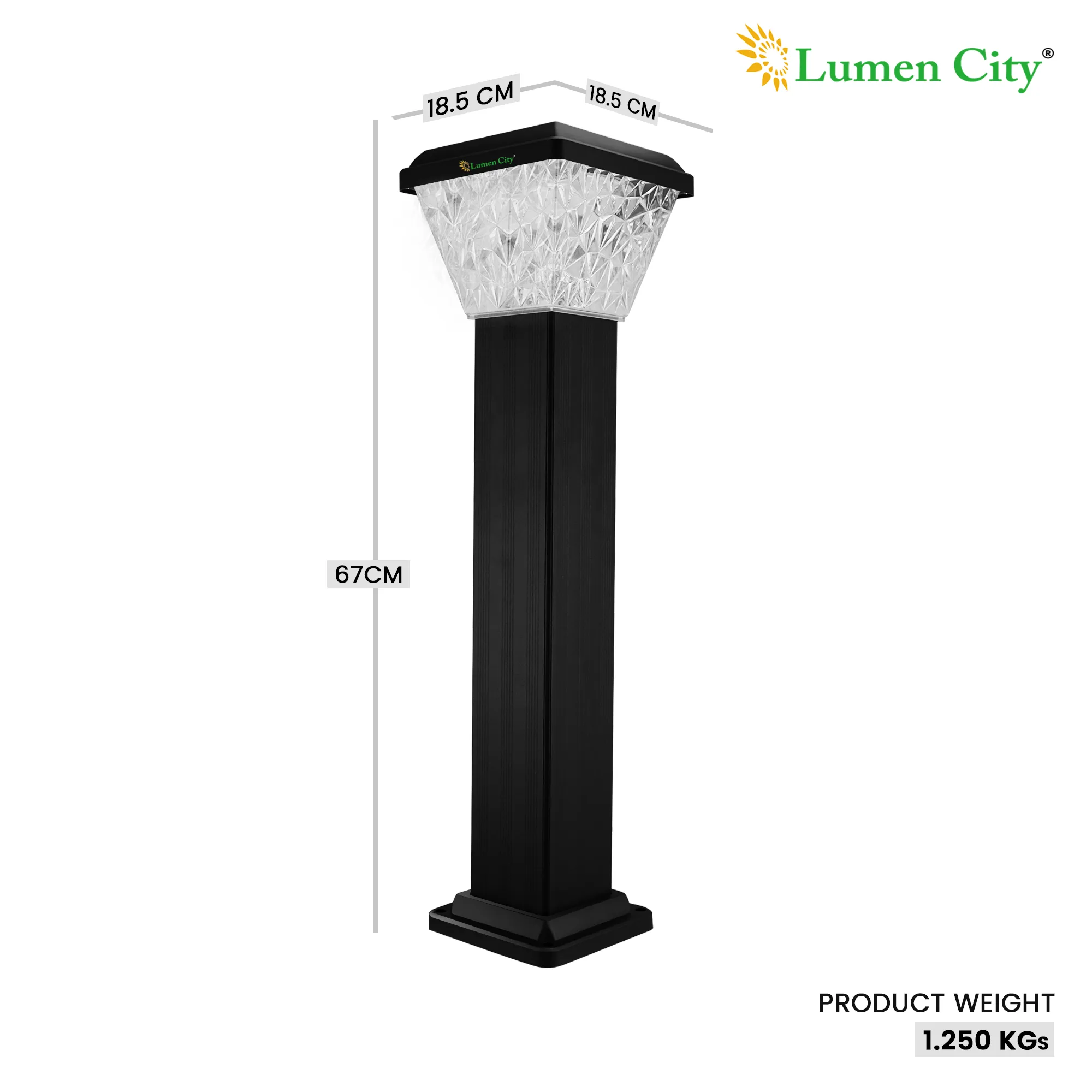

The Solar Bollard Big Diamond Model 1298 carries IP65 weatherproofing, confirming complete dust ingress protection and resistance to water jets from any direction. At 67 x 18.5 x 18.5 cm, the Big Diamond is the largest bollard in the LumenCity garden range — 18.5 cm wide versus the 161 mm Mini Diamond and 86 mm Secret/Cube models — providing the physical scale appropriate for housing society main compound path lighting and hotel garden primary walkway installations where a more substantial bollard presence is required. The diamond-faceted crystal-effect diffuser housing at the top of the square bollard stem produces the multi-point refractive light pattern that distinguishes the Big Diamond from standard square garden bollards, visible in the product photograph. The large 18.5 x 18.5 cm base footprint provides stable self-standing floor placement on compound tiles, hotel courtyard paving, and hard garden surfaces without anchoring. IP65 protects all internal components year-round across India’s full outdoor climate range from Kerala monsoon to Rajasthan dust.

Remote Control & Operating Modes

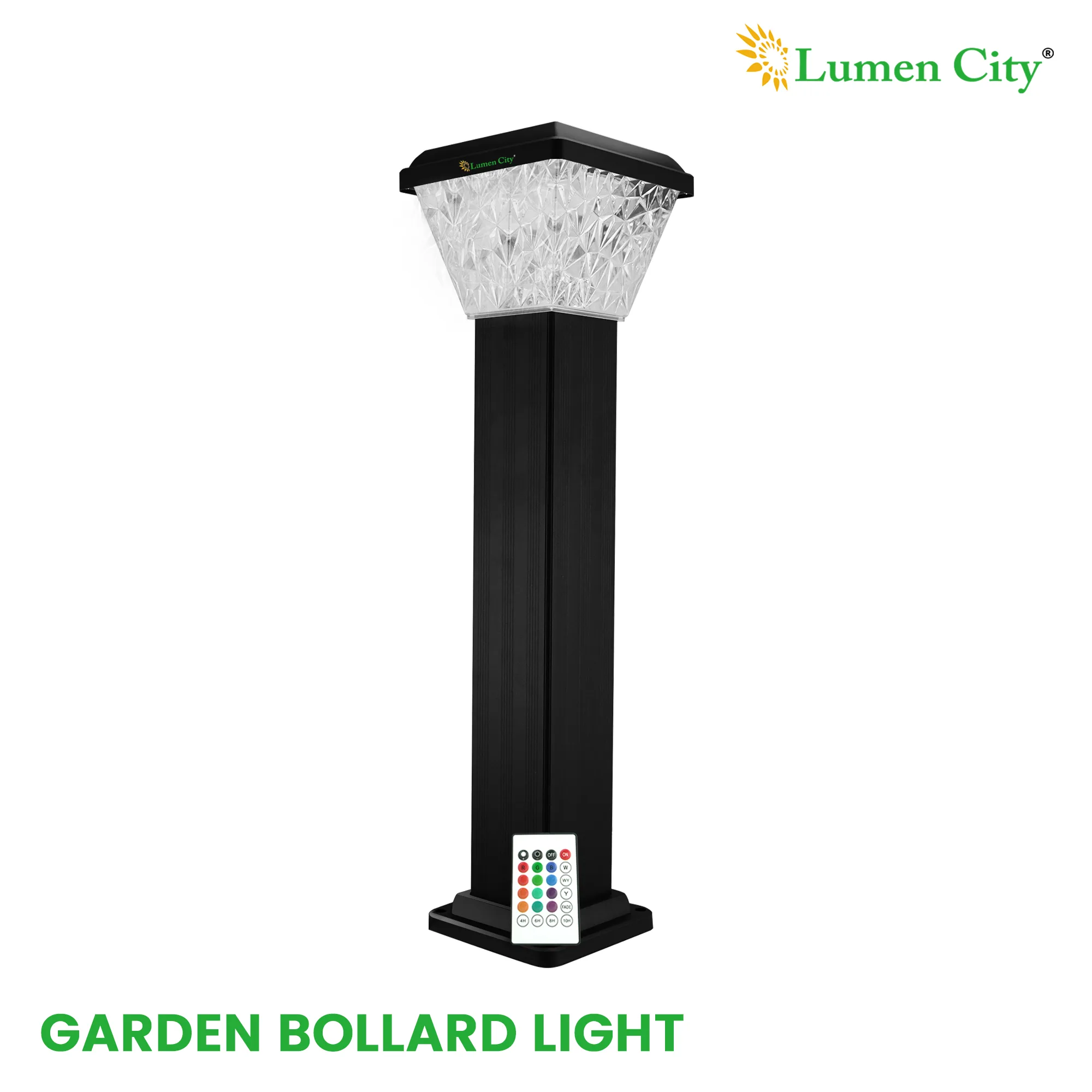

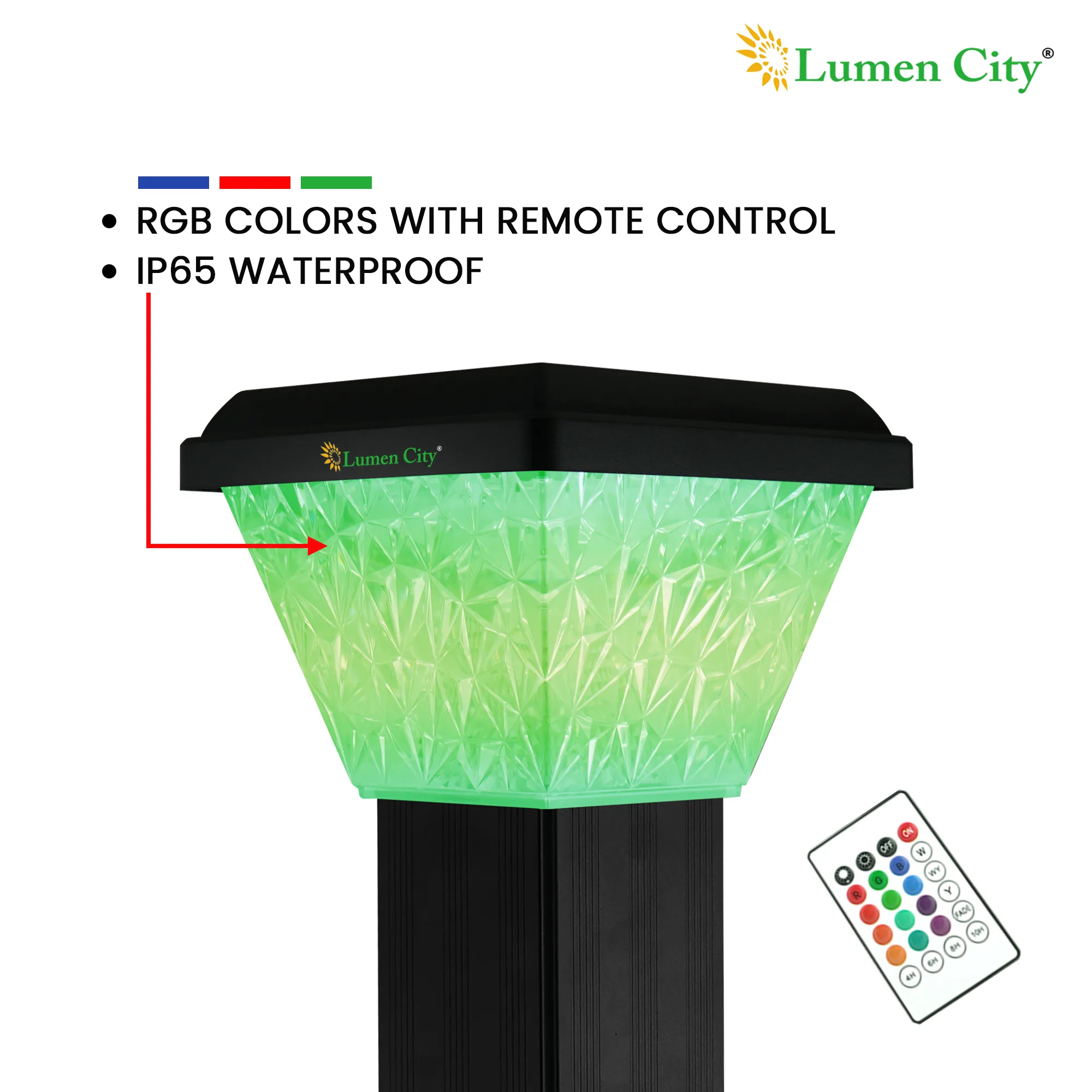

The Big Diamond Model 1298 is operated by wireless remote control with the following modes confirmed from the remote legend visible in the product image. OFF: switch off light completely, Dawn to Dusk also off. AUTO: Auto mode working, Dawn to Dusk working. 2H: Light Off After 2 hours, Dawn to Dusk working. 4H: Light Off After 4 hours, Dawn to Dusk working. 6H: Light Off After 6 hours, Dawn to Dusk working. 8H: Light Off After 8 hours, Dawn to Dusk working. W: Light Change to Warm White. Y: Light Change to Natural White. Decrease Brightness (minus). Increase Brightness (plus). The timed modes are the critical battery management feature for the 5W Big Diamond — at full output, the 2H or 4H modes enable full-brightness operation during peak evening hours with automatic switch-off to preserve battery for pre-dawn operation via the Dawn to Dusk fallback. The W and Y colour modes plus the RGB capability via the 3-in-1 colour system provide the full colour range of the Mini Diamond 1340 in a larger, higher-output bollard format.

Solar Panel & Charging Efficiency

The 5V 3W monocrystalline solar panel in the Solar Bollard Big Diamond Model 1298 is the highest-wattage panel in the LumenCity garden bollard range, matching the Cube Model bollard (1342) and gate light (1345) panel specification. At 3W rated output, the monocrystalline panel provides the daily energy harvest required to replenish the 2200mAh lithium battery within the 6-8 hour charging window. Monocrystalline silicon at 19-22% conversion efficiency outperforms polycrystalline alternatives at the same panel surface area — relevant for Indian buyers in high-rainfall monsoon zones where diffused irradiance reduces panel output during the June-September season. The large 18.5 x 18.5 cm bollard cap provides a correspondingly larger panel surface area for the integrated 5V 3W panel compared to the smaller bollards in the range, enabling maximum daily energy harvest at the Big Diamond’s floor-mount installation height. For housing society and hotel garden projects in India’s high-irradiance zones — Rajasthan, Gujarat, Telangana, Tamil Nadu — the 5V 3W monocrystalline panel achieves consistent full battery recharge across all seasons.

Installation & Mounting

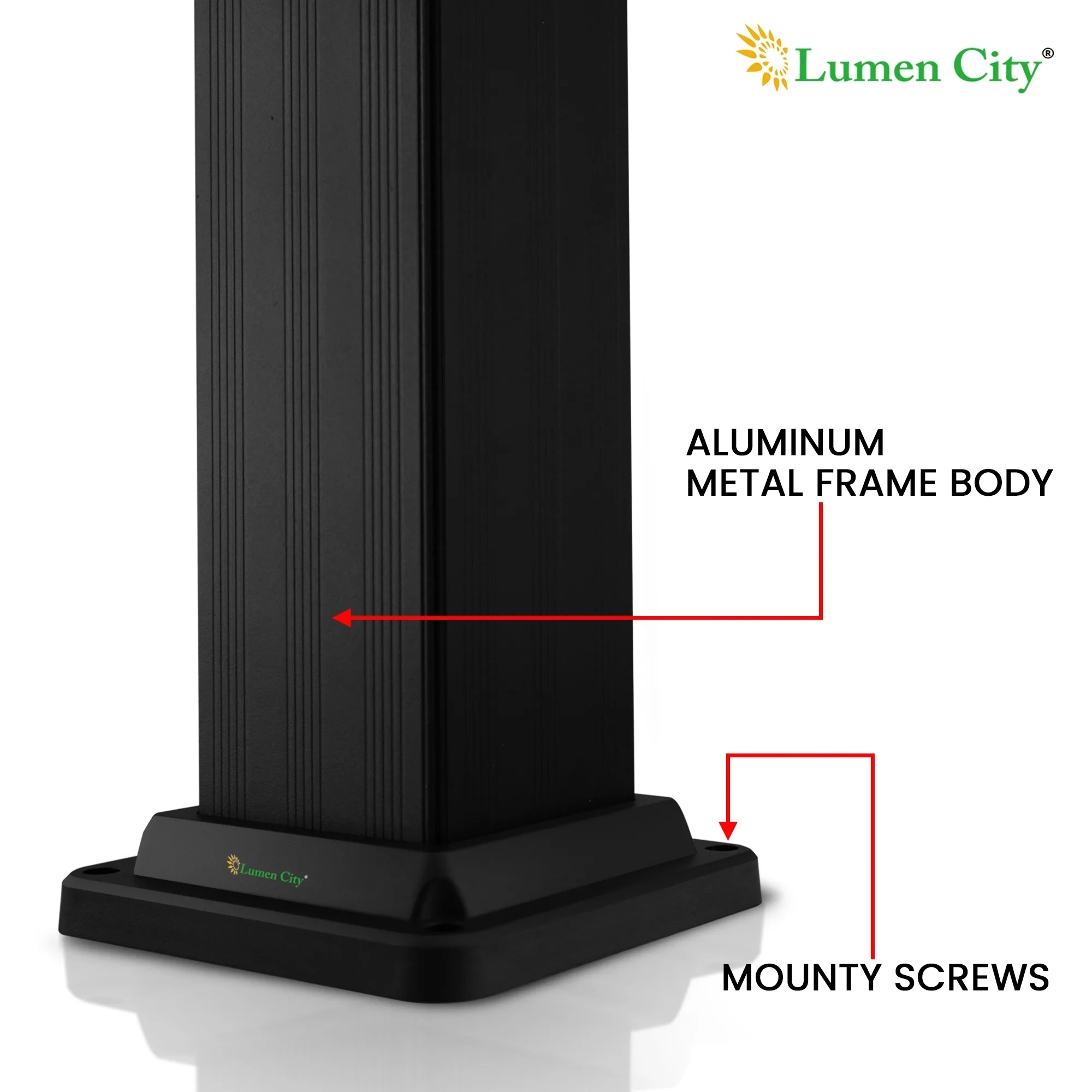

The Solar Bollard Big Diamond Model 1298 installs without external wiring, underground cable, or mains power connection. The floor mount base allows the unit to be placed on any flat outdoor surface — compound tile, hotel courtyard paving, rooftop terrace, garden path hard edge, or farmhouse driveway paving — without tools, electricians, or civil works. At 67 x 18.5 x 18.5 cm, the Big Diamond has the largest footprint and the tallest profile in the LumenCity solar bollard range, making it the appropriate choice for housing society compound main walkways, hotel primary garden paths, and farmhouse estate entrance drives where the smaller bollard models would appear disproportionately modest against the scale of the pathway. The wireless remote control operates from the point of installation without additional configuration. For housing society management committees and hotel garden managers specifying RGB and remote-controlled solar bollard lighting, the Big Diamond Model 1298 is the highest-specification available in the LumenCity range — offering 5W output, 3-in-1 plus RGB, timed remote modes, IP65, and 2200mAh in a single floor-mount unit. With 6 units per carton, the Big Diamond is typically procured for specific feature path locations or in small sets for entrance boulevard installations.

Technical Specifications

Ideal Applications

• Housing society compound main walkway and primary garden path premium bollard lighting
• Hotel and resort courtyard primary path, garden entrance, and landscape feature bollard
• Farmhouse estate entrance driveway, garden main walk, and lawn feature bollard lighting
• Housing colony main garden path junction and open lawn border high-output bollard lighting
• Diwali, Navratri, and garden event RGB decorative bollard lighting on open terraces
• Rooftop terrace garden main path and large outdoor patio perimeter bollard lighting
• Premium residential garden entrance and feature landscaping bollard lighting
