9W LED Panel Light – Aluminium Slim Round Recessed | 900 Lumens | 90-265V | False Ceiling Downlight

Overview

The 9W Aluminium Slim Recessed Round LED Panel Light (Model 1307) is a compact, energy-efficient false ceiling downlight suited to small and medium-sized rooms across Indian homes, offices, and housing societies. Operating on a wide input voltage range of 90-265V, it is built to handle the fluctuating power supply conditions common in Indian urban colonies and semi-urban areas. With an outer size of 12x12x1.4 cm and a Phi 100 mm cutout diameter, it is one of the most compact panel lights in this wattage range — ideal for retrofitting into existing false ceilings without enlarging the cutout. Delivering 900 lumens from 45 SMD LEDs at just 9 watts, this panel replaces a conventional 45-60W incandescent bulb while consuming a fraction of the electricity.

LED Performance & Light Output

Powered by 45 SMD LEDs in an edge-lit configuration, the 9W panel delivers 900 lumens of uniform, shadow-free illumination across the lit area. The flat diffuser panel ensures even light distribution without visible hot spots — a critical quality marker for recessed ceiling panels used in bedrooms, corridors, and retail counters. With a luminous efficacy of 100 lumens per watt, this panel is highly efficient by Indian market standards. The 90-265V wide input voltage tolerance ensures stable, flicker-free performance in areas with variable supply voltage, such as tier-2 cities, rural connections, and older housing societies where mains fluctuation is frequent. There is no warm-up delay — the panel achieves full brightness instantly on switch-on.

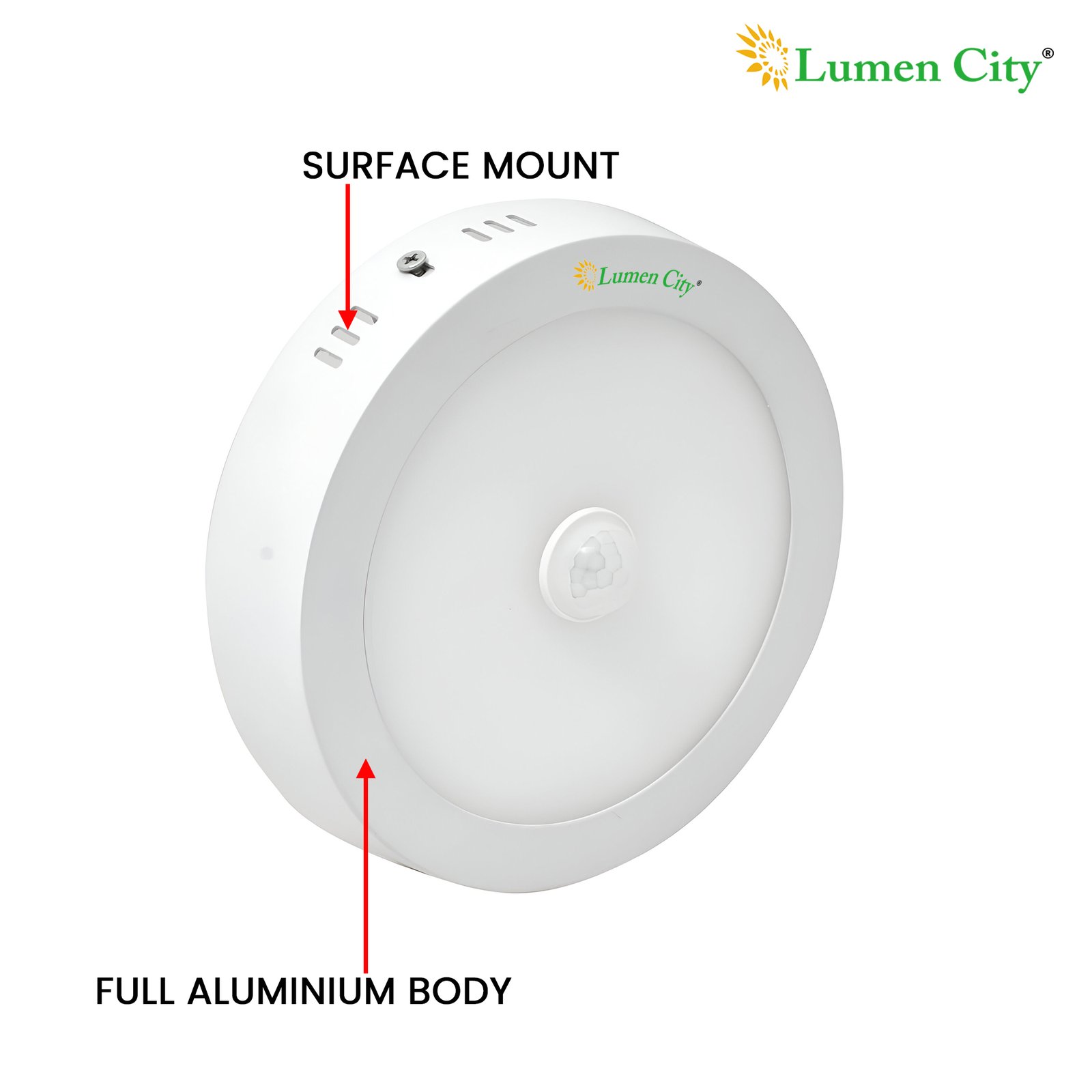

Body Build & Construction

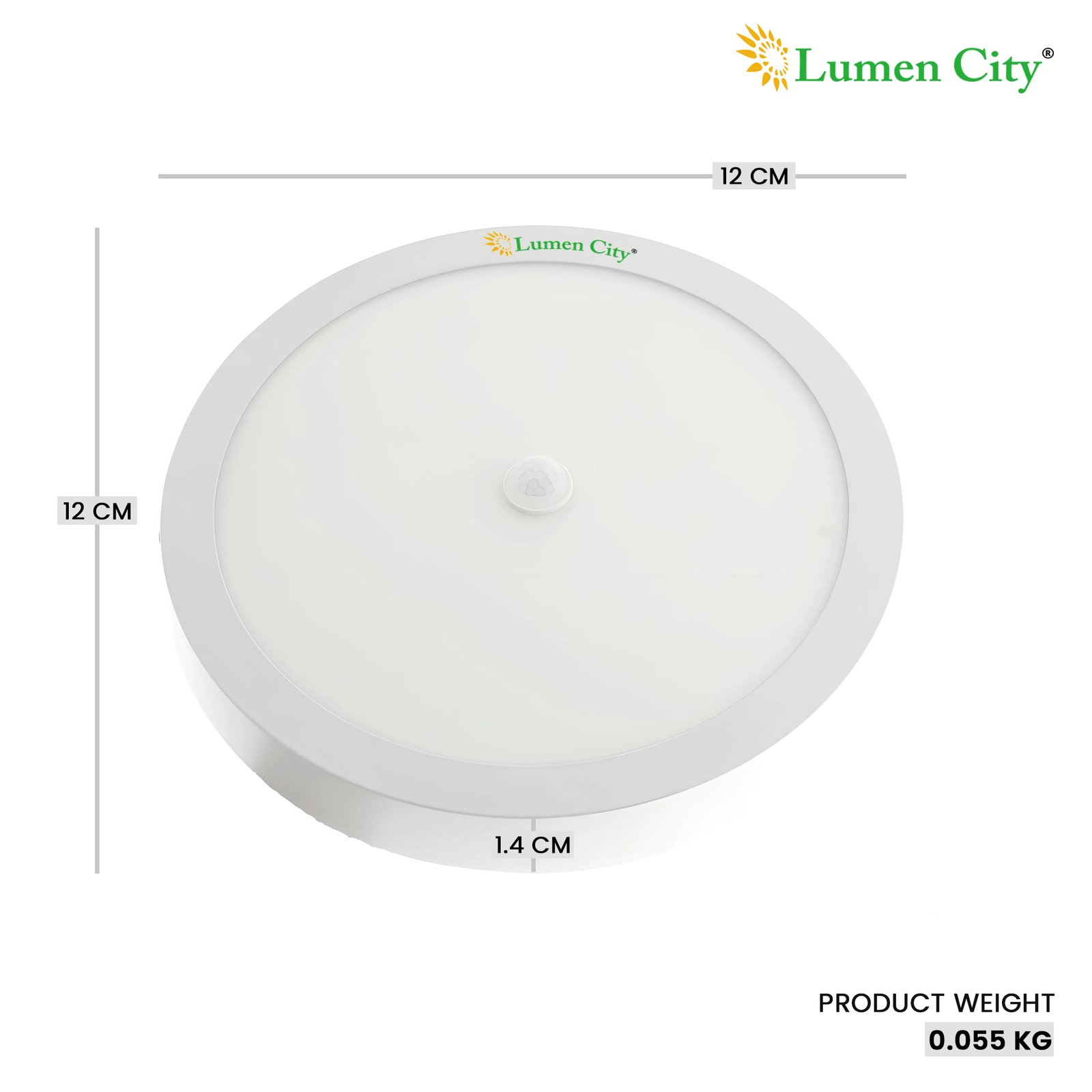

The housing is constructed from die-cast aluminium, providing superior thermal management compared to polycarbonate alternatives widely available in the Indian market. Aluminium conducts heat away from the LED driver and chip arrays efficiently, preventing heat accumulation that shortens LED lifespan. The 14 mm slim profile fits within a standard false ceiling cavity without requiring additional depth clearance. The white powder-coated finish blends flush with the surrounding ceiling, delivering a clean, integrated appearance suitable for residential bedrooms, living rooms, office cabins, and retail spaces. The compact 12×12 cm form factor allows multiple units to be installed in smaller rooms without requiring large cutouts.

Voltage Compatibility & Driver Performance

The 9W panel operates on 90-265V AC input, making it compatible with all standard Indian electrical supplies — from a stable 230V urban grid to a fluctuating rural connection. The integrated constant-current LED driver regulates power delivery to the LEDs regardless of input voltage variation, preventing premature LED degradation from voltage spikes. This is especially important in housing society common areas and agricultural connections where supply quality is inconsistent. The built-in driver also eliminates radio frequency interference, ensuring no disruption to Wi-Fi routers, televisions, or intercoms sharing the same circuit. No external stabiliser or driver box is required, keeping installation clean and uncomplicated.

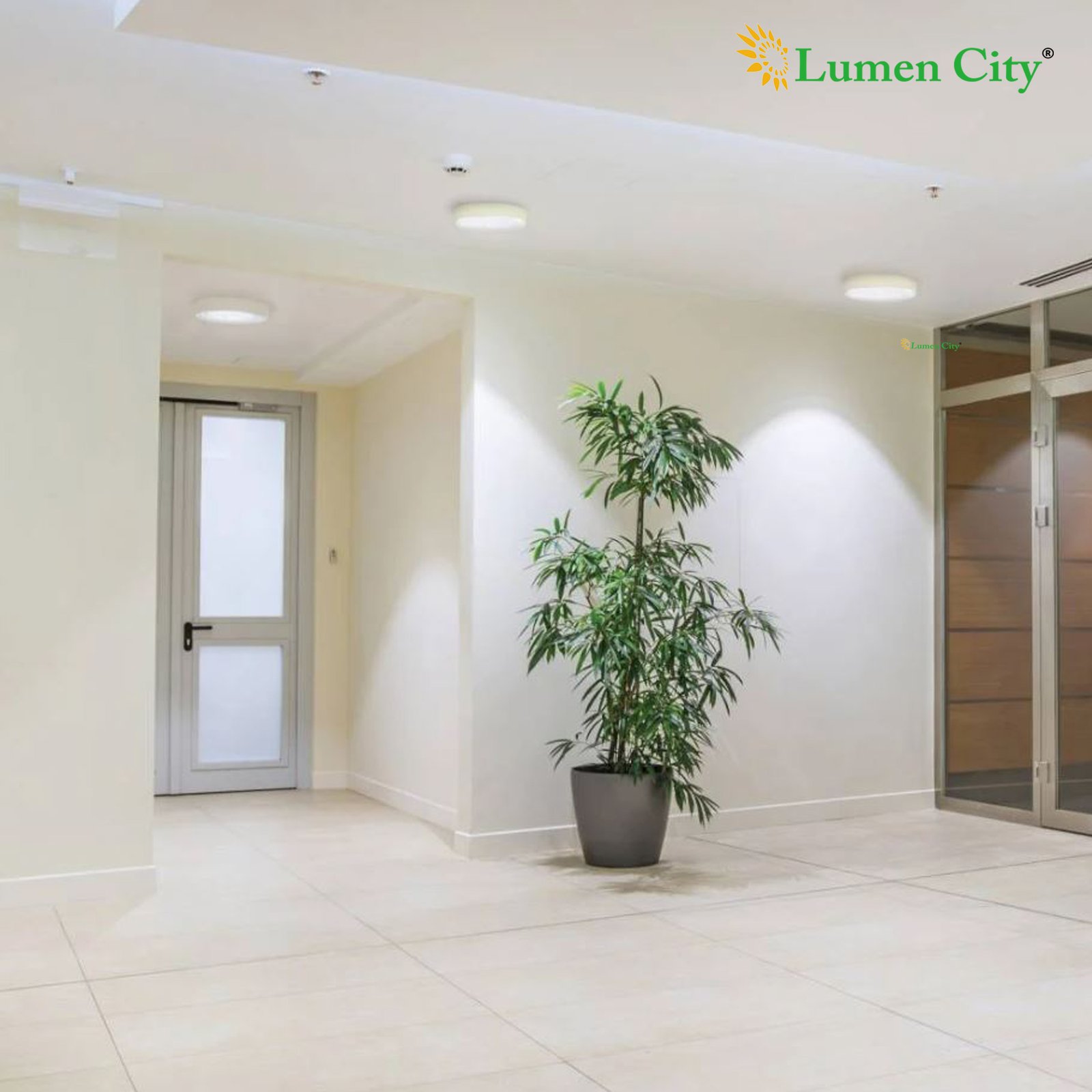

Ideal Applications

The 9W slim round recessed LED panel light is best suited to small-to-medium spaces across residential and light commercial settings in India. In homes, it works well in bedrooms, children’s rooms, study areas, small kitchens, bathrooms, and corridors. In housing society buildings, it is a cost-effective choice for staircase landings, lift lobbies, and service corridors. For shops, clinics, and small offices, it provides focused task lighting over counters, workstations, and consultation areas. The Phi 100 mm cutout matches the standard ceiling hole size used widely across older Indian residential buildings, making it a direct retrofit choice with no additional cutting required.

Energy Efficiency & Cost Savings

At 9 watts, this panel light offers significant electricity savings over the conventional lighting it replaces. Switching from a 45W incandescent or 15W CFL to this LED panel reduces per-fitting power consumption by up to 80%. In a housing society with 50 common area fittings, this translates to hundreds of units saved per month on common area electricity bills — directly reducing maintenance levy costs. The long LED lifespan, typically exceeding 25,000 hours under normal operating conditions, further reduces replacement frequency and total cost of ownership over a 5-year period. No mercury, UV, or IR radiation makes it safe for closed spaces and near furniture, fabrics, and art.

Installation & Mounting

The 9W aluminium slim recessed round panel light installs into a Phi 100 mm cutout in any false ceiling material — gypsum board, PVC, or wood. Spring-clip mounting locks the panel in place automatically when pushed into the cutout, without requiring screws or additional brackets. A flying lead connector is supplied for direct wiring to the mains supply; the driver is built into the panel housing, eliminating any need for an external driver box. The slim 1.4 cm depth requires minimal cavity clearance behind the ceiling board — achievable within a standard false ceiling frame. Wide voltage input eliminates the need for a voltage stabiliser, even in fluctuation-prone supply areas.

Technical Specifications
